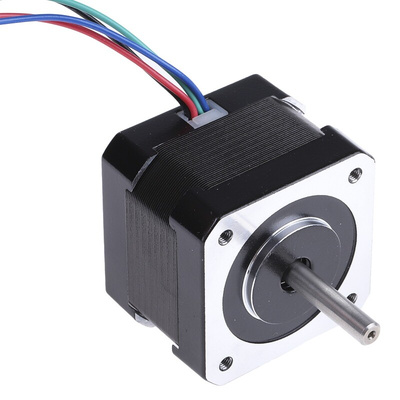

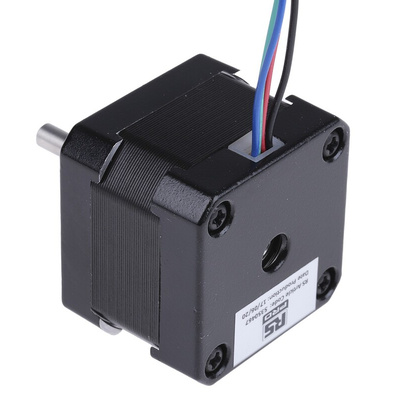

RS PRO Hybrid, Permanent Magnet Stepper Motor, 0.22Nm Torque, 2.8 V, 1.8°, 42.3 x 42.3mm Frame, 5mm Shaft, Шаговый двигатель

RS PRO Hybrid Stepper Motor 1.8°, 0.22 Nm, 2.8 V, 1.33 A, 4 Wires

Use this RS PRO hybrid stepper motor to make controlled and precise and movements with electric devices. Stepper motors have brushless assemblies and divide a full motor rotation into smaller, equal steps. This increases precision and efficiency at slower speeds. To maximize power in smaller devices, this hybrid stepper integrates permanent magnet and variable reluctance motor technologies.

The motor is RoHS (Restriction of Hazardous Substances) compliant, so it doesn't contain harmful levels of hazardous materials like lead. And like all products from our RS PRO range, it's been tested by engineers for consistency and quality.

These hybrid steppers are typically found in lasers and optics applications, as components of complex devices from linear actuators to goniometers and rotation stages. You'll find them in a variety of commercial devices, too, including camera lenses, DVD players and 3D printers.

Features and Benefits

• Step angle of 1.8°
• Holding torque of 0.22 Nm

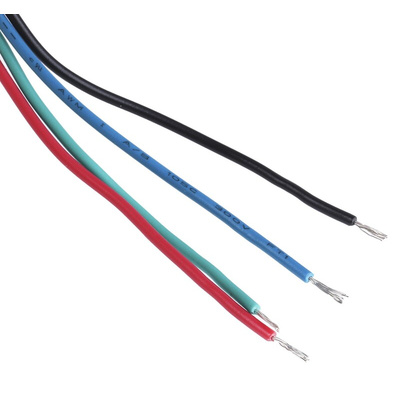

• Four-wire bipolar winding
• Voltage rating of 2.8 V
• Frame size of 42.3 x 42.3 mm
• Hybrid stepper motor type with permanent magnet
• Current rating of 1.33 A
• Depth of 33 mm
• Resistance per phase of 2.1 Ω
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
