RS PRO Hybrid, Permanent Magnet Stepper Motor, 0.44Nm Torque, 2.8 V, 1.8°, 42.3 x 42.3mm Frame, 5mm Shaft, Шаговый двигатель

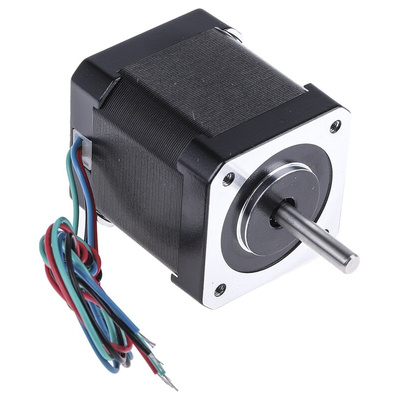

RS PRO Hybrid Stepper Motor 1.8°, 0.44 Nm, 2.8 V, 1.68 A, 4 Wires

The RS PRO hybrid stepper motor is ideal for making precise and controlled movements with electric devices. Offering high precision and efficiency at lower speeds, stepper motors are brushless assemblies that divide a full motor rotation into several smaller, equal steps. This type of hybrid stepper model benefits from both permanent magnet and variable reluctance motor technologies and is used to maximise power in small devices.

The motor has been tested by engineers for durability and consistency to earn it the RS PRO seal of approval. For peace of mind, it's RoHS (Restriction of Hazardous Substances) compliant, so doesn't contain harmful levels of toxic materials, such as lead.

Hybrid stepper motors are often found in lasers and optics applications, as part of complex devices such linear actuators and goniometers. They can be used in a variety of commercial applications – you'll find them in everything from camera lenses and DVD players to 3D printers.

Features and Benefits

• Step angle of 1.8°
• Holding torque of 0.44 Nm
• Four-wire bipolar winding
• Voltage rating of 2.8 V
• Frame size of 42.3 x 42.3 mm
• Hybrid stepper motor type
• Current rating of 1.68 A
• Depth of 47 mm
• Resistance per phase of 1.65 Ω
• RoHS (Restriction of Hazardous Substances) compliant product

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
