RS PRO Hybrid, Permanent Magnet Stepper Motor, 1.26Nm Torque, 2.5 V, 0.9°, 56.4 x 56.4mm Frame, 6.35mm Shaft, Шаговый двигатель

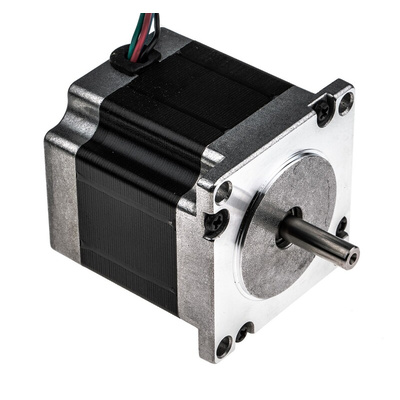

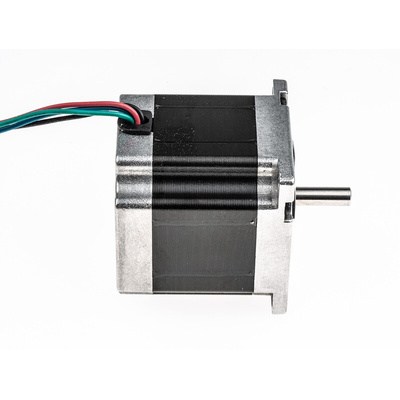

RS PRO Unipolar Hybrid, Permanent Magnet Stepper Motor 0.9°, 1.26 Nm, 2.5 V, 2.8 A, 4 Wires

The RS PRO 4-wire unipolar hybrid permanent magnet stepper motor helps you achieve both precise movements and carefully spaced steps in electrical assemblies. It will offer high torque even at lower speeds.

This efficient DC motor combines characteristics from variable-reluctance (VR) and permanent-magnet (PM) stepper motors. It provides a constant and infallible magnetic field, which helps to ensure the greatest accuracy for precision positioning applications. This product has been tested by leading engineers, like all of our trusted RS PRO range, to ensure its reliability. It doesn't contain harmful levels of restricted substances such as lead, mercury or cadmium as it's manufactured to RoHS (Restriction of Hazardous Substances) standards.

This versatile hybrid model is common in a number of applications ranging from highly technical laser and optics equipment through to electronics such as disc drives and 3D printers.

Features and Benefits

• Step angle of 0.9°
• Holding torque of 1.26 Nm

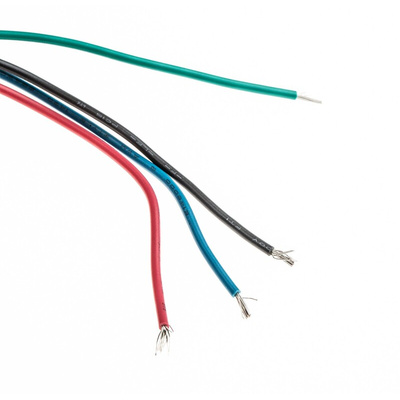

• Four-wire unipolar winding
• Voltage rating of 2.5 V
• Frame size of 56.4 x 56.4 mm
• Hybrid, permanent magnet stepper motor type
• Shaft diameter of 6.35 mm
• Current rating of 2.8 A
• Unipolar winding arrangement
• Shaft length of 19 mm
• Depth of 56 mm
• Resistance per phase of 0.9 Ω
• RoHS (Restriction of Hazardous Substances) compliant product
