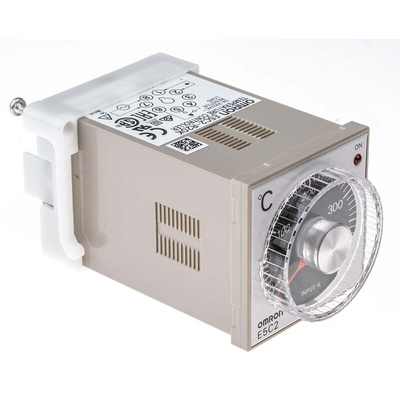

E5C2-R20K AC100-240 0-400, Omron E5C2 On/Off Temperature Controller, 48 x 48mm, 100 → 240 V ac Supply Voltage, Контроллер

Omron Temperature Controller

The Omron E5C2 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm. It has a K-type (0°C to 400°C) thermocouple input and relay output for ON-OFF control. It has thermocouple element lead wires that make soldering difficult due to its inability to sticking to the solder.

Features and Benefits

Front panel offset adjustments on PD controllers

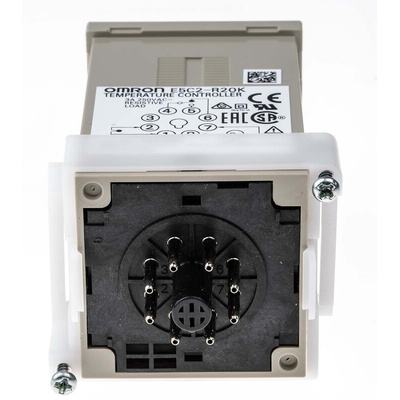

Fits standard 8-pin round sockets
Panel mounting hardware included
Compact, price effective temperature controller
Incorporates proportional control and reset adjustment function
Consecutive mounting possible using mounting adapter
Incorporates a plug-in socket, allowing DIN-track and flush mounting
Power consumption is 3.6VA

Certifications

IP40 (front panel)
IP00 (terminals)

Datasheet
