I615SPC-07G, Druck 0bar to 2bar DPI 615 Pressure Calibrator - RS Calibration, Калибратор давления

5350962
Номер производителя: I615SPC-07GПроизводитель: Druck
Цена за шт.
1997700.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

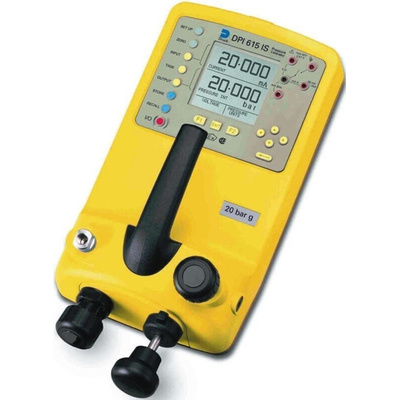

Druck Pressure Calibrator - DPI615 - IS, Intrinsically Safe

Druck's DPI615 - IS pressure calibrator is not only portable, easy to use and intrinsically safe, but it is designed for pressure ranges from 2.5 mbar to 700 bar. Druck's range of pressure calibrators are very easy to use, any technician can use the DPI615 calibrator without any previous formal training. The key to the simplicity of use is mainly because of the task-menu, this function allows users to use modes such as P-I, switch test and leak test at the touch of a button. Constructed of a robust, rugged and weather-proof material and design, styled in such a way that the pressure pump can be operated, and test leads connected without compromising the visibility of the large dual parameter display. Featuring a built-in continuity tester and the mA step and ramp outputs contribute to extending the capabilities to include commissioning and maintenance of control loops. Predominantly used for pressure calibration, the DPI615 can be used within a multitude of applications including maintenance and commissioning.

Features & Benefits

• These intrinsically safe pressure calibrators are certified to European and North American standards for use in hazardous areas
• Ranges between -14.7 to 6000 psi
• A task-driven user interface facilitates an easy set-up of calibration, switch testing and leak testing 4 to 20mA simulation, relief valve testing, data logging and ambient temperature recording modes
• Pressure range accuracy: ±0.025% full scale of all ranges
• Integral combined pressure/vacuum pump
• Dual readout: input and output
• 4-20mA loop test: auto step and ramp
• RS232 interface and fully documenting version
• Pressure and current displayed simultaneously
• Current and voltage measurement
• 26 Selectable pressure units
• Two-way PC communication for transferring procedures and results
• Pressure/vacuum pump -850mbar to 20bar

Did you know?

The "IS" in the name of a pressure calibrator stands for intrinsically safe, if an item is intrinsically safe it means that it is incapable of releasing sufficient electrical and thermal energy under normal or abnormal conditions. This results in the item not being able to cause ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration.

What's included with this kit?

• Batteries
• Carrying case
• Test leads
• User guide
• Calibration certificate
• Pressure calibrator

Group and Category

ll 1 G EEX ia llC T4

Техническая спецификация
pdfDPI 610/615 Series Portable pressure calibrators Data Sheet
pdfDruck DPI 610/615 IS Intrinsically Safe Portable Pressure Calibrator User Manual
pdfDatasheet
Вес:
3кг
Высота:
140мм
Длина:
300мм
Измерение токовой петли:
Да
Искробезопасный:
Да
Испытания на герметичность:
Да
Калибровка:
RSCAL
Максимальное измерение давления:
2бар
Минимальное измерение давления:
0бар
Модель р:
DPI 615
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Размеры:
300 x 170 x 140мм
Регистрация данных:
Да
Сертификация опасной зоны:
ATEX
Тип портов:
Gauge
Ширина:
170мм
