11-818-999, Norgren G 1/4 Pneumatic Regulator -, 1/4in, 8bar max. input, Регулятор

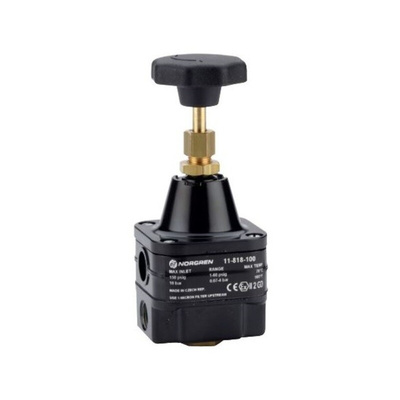

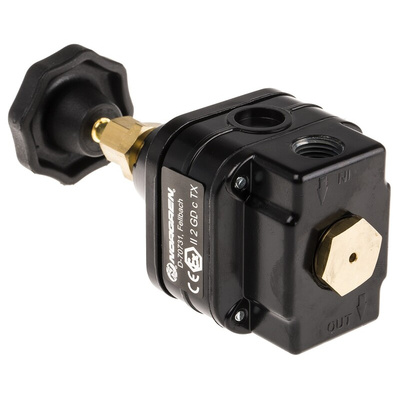

IMI Norgren Pneumatic Regulator, 8 Bar Maximum Input Pressure, 240L/min Flow Rate - 11-818 Series - 11-818-999

This pneumatic regulator from IMI Norgren keeps levels consistent in your pressurised equipment. It monitors the system for variations and shuts the airflow on and off as needed to keep it at the correct operational level. The unit works to an average of 0.01% accuracy, so its operation is precise. It can be easily mounted on a panel and, as it weighs just 0.64kg, it won't put strain on your setup. Air is double-filtered before reaching the regulator's pilot valve to help prevent leaks and maximise energy efficiency.

Features & Benefits

• Maximum input pressure of 8 bar or 116 psi (pounds per square inch) for use with low-pressure systems
• Typical flow rate of 240 litres per minute so your pressure system withstands constant use
• G1/4 threaded connector for quick manual fitting
• Operating temperature range between 0°C and +70°C for use in demanding environments

Applications

• Medical respirators
• Articulated robotics
• Agricultural machinery
• Automotive industry
• Manufacturing lines

Is this pneumatic regulator resistant to corrosion?

Yes, this pneumatic regulator's body and bonnet are made from a zinc alloy that resists corrosion and can be used in damp conditions.
