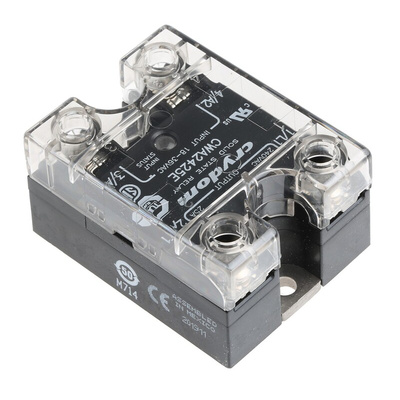

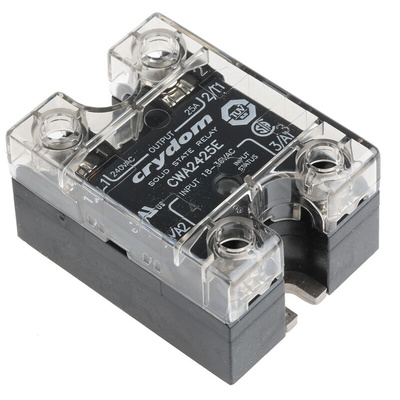

CWA2425E, Sensata / Crydom CW24 Series Solid State Relay, 25 A rms Load, Panel Mount, 280 V rms Load, 36 V rms Control, Реле

Sensata | Crydom Solid-State Relay, Touch-Safe Cover, 18 to 36V AC Control Voltage Range - CW24 Series - CWA2425E

Leave your switching tasks in safe hands with this solid-state relay from Sensata | Crydom. It doesn't have any moving parts, so there's no wear and tear, meaning you can rely on it to stay the course. A direct-bond copper substrate boosts the relay's thermal performance, while a wide operating temperature range between -40°C and +80°C means it stands up to harsh conditions. An expected MTBF of 1328 years means you can count on it for long-term performance. It's often used in applications such as motor control and machine automation.

Features & Benefits

• Electromechanical compatibility means it doesn't interfere with nearby devices
• Square washers are set into the housing to prevent loosening
• Removable cover has an IP20 rating, so it's touch-safe and protected against objects larger than 12mm
• Green LED indicator for ease of monitoring

Is this SSR suitable for resistive loads?

Yes. This SSR is a zero-cross switching type, so it activates when voltages are close to zero to reduce the risk of component damage when it's working with resistive loads.

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - CW Series
