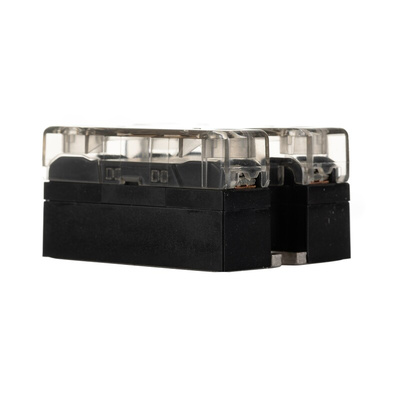

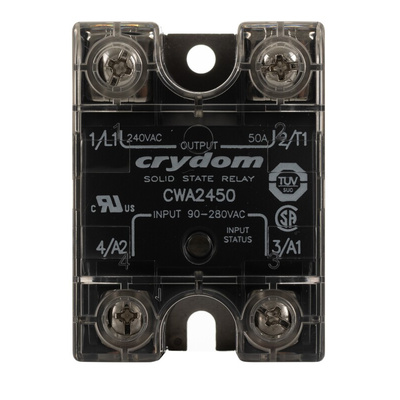

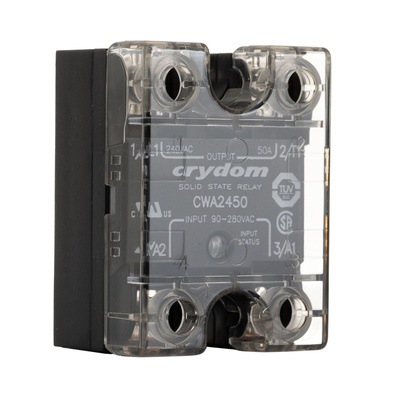

CWA2450, Sensata / Crydom CW Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V rms Load, 280 V rms Control, Реле

Sensata | Crydom Solid-State Relay, 90 to 280V AC Control Voltage Range, 24 to 280V AC Operating Voltage Range - CW24 Series - CWA2450

Switch up your machine management with this solid-state relay from Sensata | Crydom. It rapidly switches equipment on and off to achieve precise control over your operations. As the device has no moving parts, it stamps out wear and tear for a long service life. An operating voltage range of 24 to 280V AC means it's suitable for use in low-power systems. Thanks to the DBC substrate, you get effective thermal and electrical conductivity that supports consistent performance. You'll find this unit in transformers, uninterruptible power supplies and medical applications.

Features & Benefits

• Resists EMI for clear signal transmissions
• Anti-rotation barriers keep the unit securely in place
• Broad operating temperature range between -40°C and +80°C for use in harsh conditions
• Maximum turn-on time of 20ms and turn-off time of 30ms for lightning-fast switching

Is this unit safe to handle?

Yes, its cover has an IP20 rating, which means it's touch-safe and protected against objects larger than 12mm to help prevent electric shocks.

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
