CWA2450E, Sensata / Crydom CW24 Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V rms Load, 36 V rms Control, Реле

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, 18 to 36V AC Control Voltage Range - CW24 Series - CWA2450E

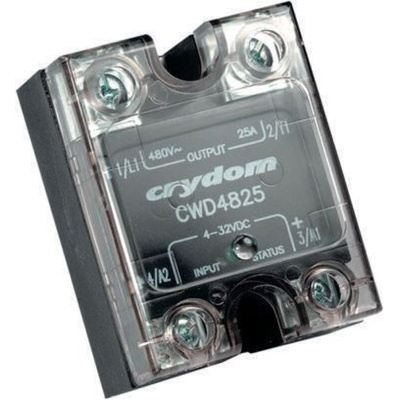

Switch heavy loads time after time with this solid-state relay from Sensata | Crydom. It has no moving parts, so it keeps wear and tear at bay. This relay is a reliable choice in harsh industrial settings, as it has a wide operating temperature range between -40°C and +80°C. For safety, its cover has an IP20 rating, so it's touchproof and protected against objects larger than 12mm. An MTBF of 1328 years means it's a long-lasting piece of kit. You can depend on it for applications such as medical equipment and robotics.

Features & Benefits

• Direct-bond copper substrate boosts its thermal performance
• Clear cover makes it easy to check the operating status at a glance
• Zero-cross switching means it switches when the voltage is near 0V for reduced noise and increased efficiency

Can this SSR handle heavy vibrations?

This SSR uses a sturdy screw and washer design. The washers are square-shaped to stop them from turning in the housing, which helps the device to stay put in the event of heavy vibrations.

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - CW Series
