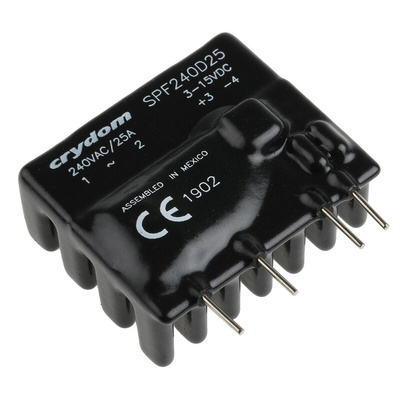

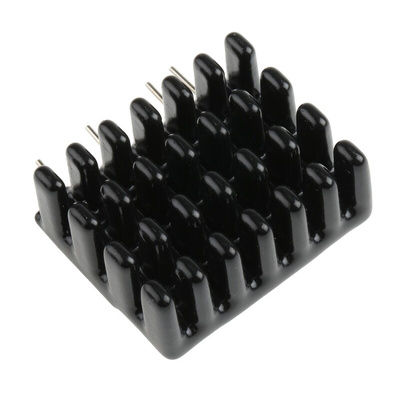

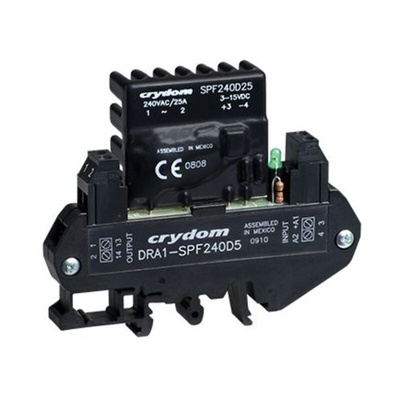

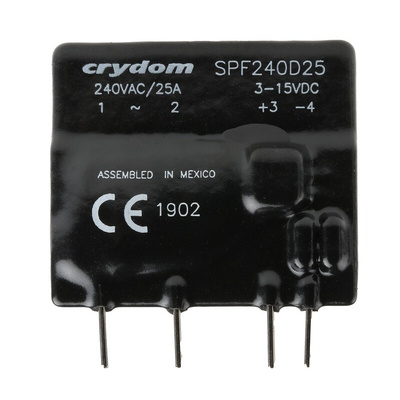

SPF240D25, Sensata / Crydom DRA1 Series Solid State Relay, 25 A rms Load, PCB Mount, 280 V rms Load, 15 V Control, Реле

Sensata | Crydom Solid-State Relay, 25A Rated Load Current, 3 to 15V DC Control Voltage Range - SPF Series - SPF240D25

Keen to make quick work of process control? Switch things up with this Sensata | Crydom solid-state relay. It uses optical signals to open and close circuits, so it's sure to manage devices in a flash. As it switches without moving parts, the unit won't wear down quickly. Mounting the product to a PCB is a breeze thanks to its solder terminals. A low control voltage range between 3 and 15V DC means the component steers clear of hazardous electrical loads. You'll find relays like this one used in instrumentation and automotive manufacturing.

Features & Benefits

• Compact dimensions of 34.2 (H) x 40.6 (W) x 22.8mm (D) to maximise space on your PCB
• Rated load current of 25A for use in high-power applications
• Fast turn-on time of half a cycle for rapid switching
• Low input current of 15mA for energy-efficient switching

Does this product work in extreme temperatures?

Yes, this relay has a wide operating temperature range between -30°C and +80°C, so it stays strong in challenging industrial conditions.

Approvals

UL

SPF Series Relay Data Sheet

Line Drawing - SPF240D25
