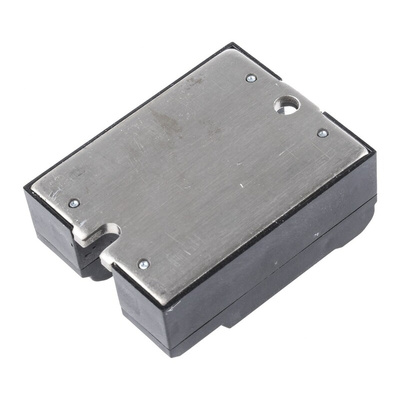

SSC1000-25-24, Sensata / Crydom SSC Series Series Solid State Relay, 25 A Load, Surface Mount, 1000 V Load, 28 V Control, Реле

Sensata | Crydom Solid-State Relay, 0 to 1000V DC Load Voltage Range, Aluminium Baseplate Material - SSC Series - SSC1000-25-24

Switch power to your circuit in a flash with this solid-state relay from Sensata | Crydom. It works by converting an incoming electrical signal to an optical one without moving parts, so there's minimal risk of mechanical wear for a long service life. Thanks to its quick turn-on time of 200μs and turn-off time of 150μs, this SSR will switch your device on and off in a jiffy. A wide load voltage range between 0 and 1000V DC means it's suitable for low and high-power equipment, including sensors, motors and manufacturing machinery.

Features & Benefits

• Safe to use in harsh settings, thanks to its broad operating temperature range between -40°C and +100°C
• Tough aluminum baseplate resists impact and corrosion
• Housing features anti-rotation barriers for secure installation

How durable is this SSR?

As this SSR has an MTBF of 21,395,130 hours when working at a temperature of +40°C and an MTBF of 11,545,504 hours at +60°C, you can count on it for the long term.

DC Switching

Solid State Relay - CE-Declaration of Conformity

Datasheet

Declaration of Conformity 2014/35/EU

Brochure - Panel Mount Solid State Relays
