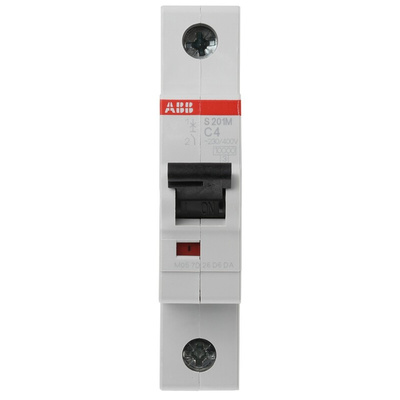

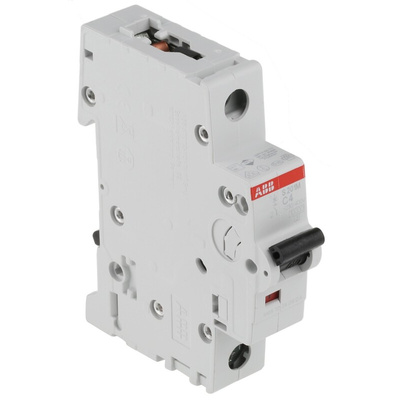

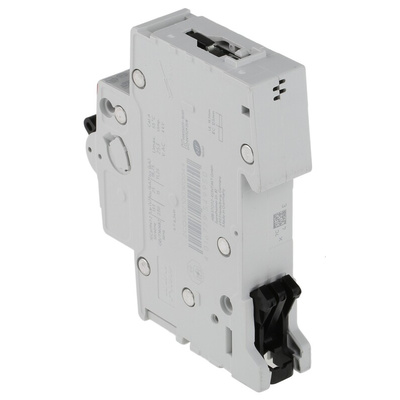

2CDS271001R0044 S201M-C4, ABB System Pro M Compact S200M MCB, 1P, 4A Curve C, 253V AC, 72V DC, 10 kA Breaking Capacity

ABB 1-Pole MCB, 230V AC Voltage Rating, 10kA Breaking Capacity - S200M Series - 2CDS271001R0044

Protect your electrical appliances from short circuits and overvoltages with this MCB from ABB. The device features two tripping mechanisms – a delayed thermal system, which defends against overloads, and an electromechanical system to safeguard your network from short circuits. As it has type-C tripping characteristics, it cuts the circuit at 5 to 10 times the 4A current rating, so is a practical choice for low-current-consuming applications. You can quickly and simply mount this circuit breaker on a DIN rail without needing any tools.

Features & Benefits

• Can be used for both AC and DC voltage supplies for versatility
• Mechanical endurance of 20,000 operating cycles for long-term performance
• Breaking capacity of 10kA to handle heavy current spikes without damage
• Narrow width of 17mm to fit into tight spaces
• Light weight of 125g for easy handling

Applications

• Telecommunications industry
• Cooling systems
• Industrial lighting

Is this circuit breaker touch-proof?

Yes, the circuit breaker has an IP40 rating, meaning it's protected from tools and objects larger than 1mm in size, including your fingers and hands.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
