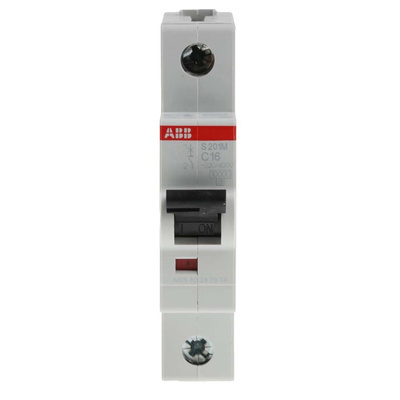

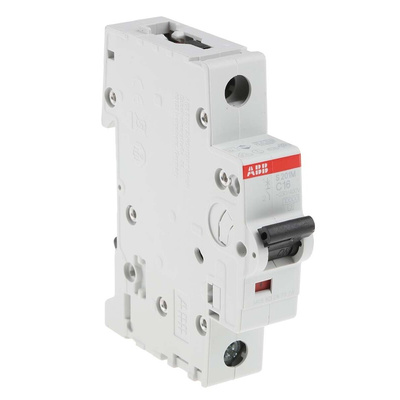

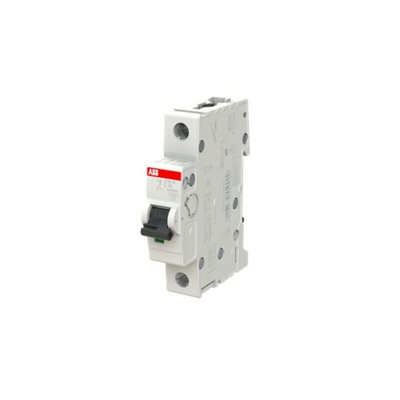

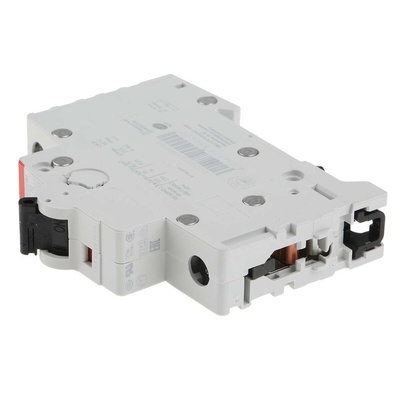

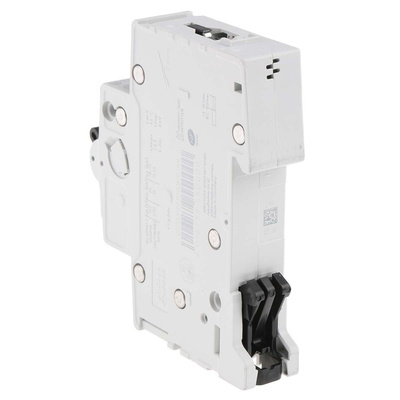

2CDS271001R0164 S201M-C16, ABB System Pro M Compact S200M MCB, 1P, 16A Curve C, 253V AC, 72V DC, 10 kA Breaking Capacity

ABB MCB, 16A Current Rating, 253V AC / 72V DC Voltage Rating - S200M Series - 2CDS271001R0164

Safeguard your circuits and electrical appliances from short circuits and overload faults with this MCB from ABB. It works by monitoring your network and cutting power in the event of a fault before it gets to your equipment, preventing damage and ensuring safety. With a current rating of 16A, this circuit breaker is a practical choice for high current consuming single-phase circuits. It's easy to install and all you need to terminate cables to it is a simple Pozidriv screwdriver, eliminating the need for complex tools.

Features & Benefits

• Rated impulse withstand voltage of 4kV to handle sudden voltage surges without damage
• Low power loss of 2.5W for energy efficiency
• Tightening torque of 2.8Nm for a secure connection to wires
• Compatible with busbars and different conductor types to suit your design needs

Applications

• Air conditioners and heating equipment
• Industrial pumps

Is this MCB flame-resistant?

Yes, this unit's thermoplastic housing is flame-resistant and stops burning in a short time when a fire occurs. It's safe for use in volatile environments.

How quickly does this MCB trip?

This MCB has type-C tripping characteristics, meaning it trips at 5 to 10 times its 16A rated current to make it suitable for inductive loads.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet

Brochure - Electrification Offering Guide

Catalogue - Miniature Circuit-Breakers

Product Environmental Profile
