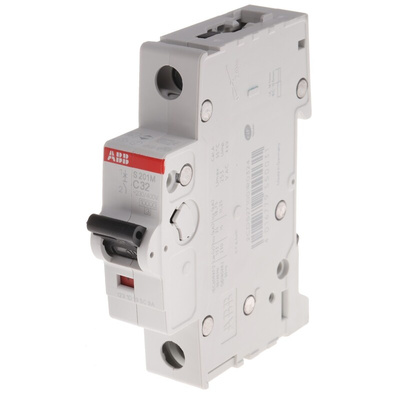

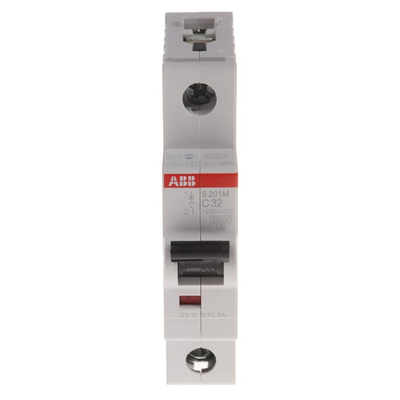

2CDS271001R0324 S201M-C32, ABB System Pro M Compact S200M MCB, 1P, 32A Curve C, 253V AC, 72V DC, 10 kA Breaking Capacity

ABB MCB, DIN Rail Mounting, 230V AC Voltage Rating - System Pro M Compact Series - 2CDS271001R0324

To prevent electrical faults from burning out your equipment, turn to this MCB from ABB. Its electromechanical and thermal tripping mechanisms protect devices from short circuits and overloads for enhanced safety in your work environment. As it has type-C tripping characteristics, this unit breaks a connected circuit in a jiffy when it detects currents between five and 10 times the current rating of 32A. This means you can count on it to hold its own in heavy-duty conditions.

Features & Benefits

• Red and green indicators clearly show the 'on' and 'off' positions for ease of use
• Bi-directional cylinder-lift screw terminals reduce wiring errors and boost the security of your electrical connections
• Safe for use in demanding environments, thanks to a broad operating temperature range between -25°C and +55°C

Applications

• HVAC systems
• Electric motors
• Lighting rigs
• Office equipment

How do I mount this MCB?

This MCB is designed for mounting on a DIN rail, so it's a breeze to install without rummaging in your kit for special tools.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet - 2CDS271001R0324 S201M-C32

Product Environmental Profile
