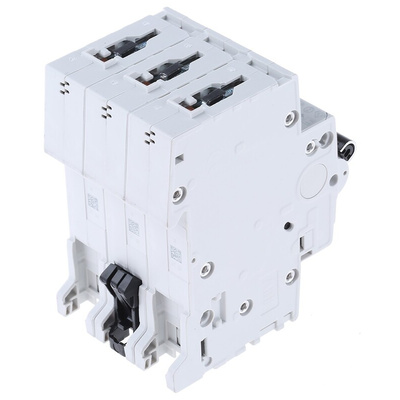

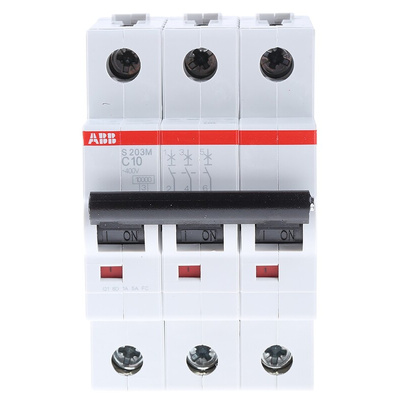

2CDS273001R0104 S203M-C10, ABB System Pro M Compact S200M MCB, 3P, 10A Curve C, 440V AC, 12V DC, 10 kA Breaking Capacity, Автоматический выключатель

ABB MCB, DIN Rail Mounting, 1.4W Power Loss - S200M Series - 2CDS273001R0104

Want to shield your equipment from power faults? Protect it with this MCB from ABB. When it detects a current overload or short circuit, it breaks the flow to help prevent electrical damage to downstream devices. With a current rating of 10A, this unit stands up to the rigours of high-power electrical systems. A breaking capacity of 10kA means it interrupts high fault currents with minimal risk of downtime. You can mount the breaker in any position on your DIN rail, so it's a flexible addition to your assembly.

Features & Benefits

• Low power loss of 1.4W means it's energy-efficient
• Type-C tripping at between 5 and 10 times its rated current makes it suitable for inductive loads
• Mechanical service life of 20,000 cycles for long-term use
• Reliable performance in a wide operating temperature range of -25°C to +55°C

Applications

• Entertainment venues
• Packaging facilities
• Electrical engineering
• Lighting fixtures

How can I tell the status of this MCB?

This device has a contact indicator that turns green when it's on and red when it's off.

Is this MCB vibration-resistant?

Yes, it's resistant to shock and vibration for stability in challenging conditions.

Standards

BS EN 60898

Datasheet - 2CDS273001R0104 S203M-C10

Catalogue - Electrical Installation Solutions for Buildings Miniature Circuit-Breakers

Product Environmental Profile
