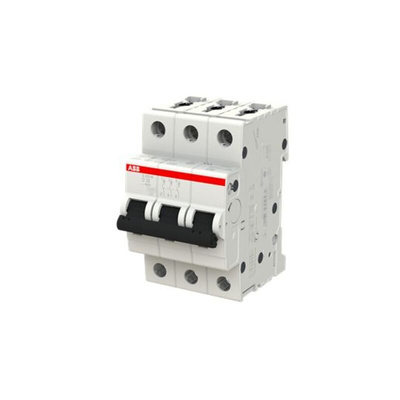

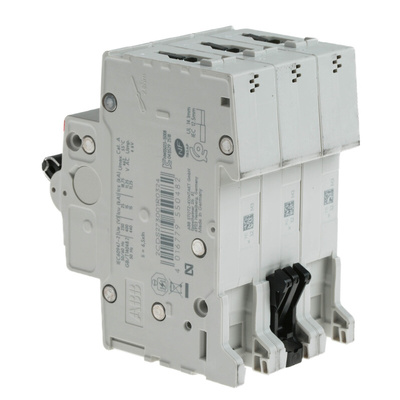

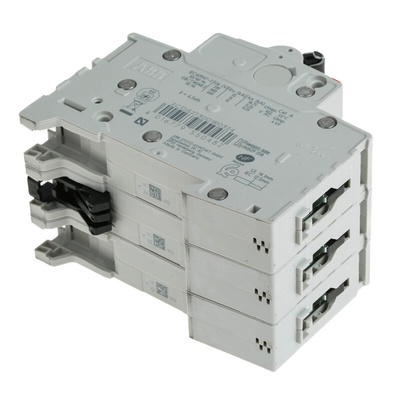

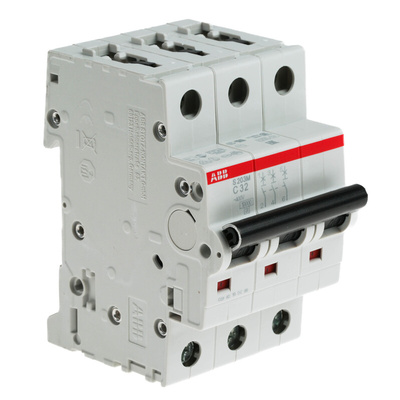

2CDS273001R0324 S203M-C32, ABB System Pro M Compact S200M MCB, 3P, 32A Curve C, 440V AC, 12V DC, 10 kA Breaking Capacity, Автоматический выключатель

Type C Triple Pole 10kA System pro M Compact

The ABB S200 Series of MCB offer a compact solution for protection requirements. These miniature circuit breakers are current limiting; DIN rail mounted and can offer a good equivalent to fused systems.

Type C characteristic offers short circuit response of 5-10 x normal rated current, making it ideal for circuits with higher inrush currents such as motor control and fluorescent lighting installations in industrial buildings where nuisance tripping might occur if a faster type was used.

DIN rail mounting
Complies with BS EN 60898
Finger Safe Terminals

ABB MCB, 12V AC Minimum Operating Voltage, DIN Rail Mounting - S200M Series - 2CDS273001R0324

Stop short circuits and overcurrent from disrupting your electrical system with this MCB from ABB. The miniature component has dimensions of 85 (H) 17.5 (W) x 69mm (D) per pole, so it takes up minimal space on a circuit board and supports packing efficiency. A high breaking capacity of 10kA means you can use the unit in demanding systems. Its contact position indicator makes visual inspection quick and convenient. As the breaker resists shock and vibration, you can rely on it in harsh operating conditions.

• Broad operating temperature range between -40°C and +70°C ensures it's safe to use in challenging environments
• Mechanical endurance of up to 20,000 operations assures you of an extended service life
• IP20-rated housing without a cover is touch-proof and protected against objects larger than 12mm
• Accepts conductors with cross sections between 18 and 8AWG for easy compatibility

Applications

• Shops
• Industrial heating and lighting systems
• Textile industry
• Power generation plants

What's the best mounting position for this MCB?

For versatility and ease of use, you can mount this breaker in any position.

Standards

BS EN 60898
