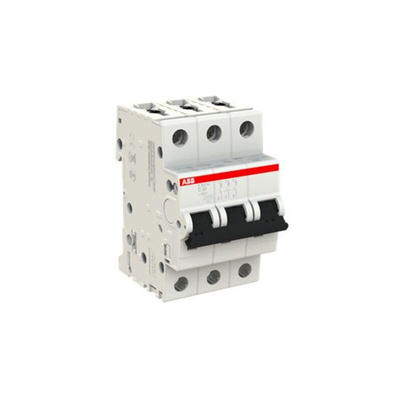

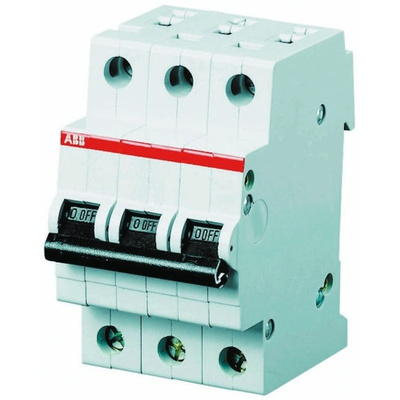

2CDS273001R0504 S203M-C50, ABB System Pro M Compact S200M MCB, 3P, 50A Curve C, 440V AC, 12V DC, 10 kA Breaking Capacity, Автоматический выключатель

Type C Triple Pole 10kA System pro M Compact

The ABB S200 Series of MCB offer a compact solution for protection requirements. These miniature circuit breakers are current limiting; DIN rail mounted and can offer a good equivalent to fused systems.

Type C characteristic offers short circuit response of 5-10 x normal rated current, making it ideal for circuits with higher inrush currents such as motor control and fluorescent lighting installations in industrial buildings where nuisance tripping might occur if a faster type was used.

DIN rail mounting
Complies with BS EN 60898
Finger Safe Terminals

ABB MCB, Screw Terminals, DIN Rail Mounting - S200M Series - 2CDS273001R0504

Looking for reliable circuit protection for your machinery? Try this MCB from ABB. The type-C breaker instantly reacts to short-circuits and overload currents, ensuring power faults won't damage your equipment. This helps you to keep production running optimally and also minimises the need for replacing faulty devices. With an electrical endurance of up to 10,000 AC cycles, you can rely on the unit's longevity. Its screw terminals make wiring simple, as the only tool you need is a screwdriver. These terminals also hold conductors securely so there's less chance of them working loose.

• Insulated actuator minimises the risk of electric shocks when you're using the device
• Clips onto a DIN rail for quick and tool-free installation
• Suitable for mounting in any position to best suit your application's needs
• IP20-rated enclosure without a cover that's touch-proof and protected against objects larger than 12mm
• Resists vibration and shock for use in demanding conditions

Applications

• Commercial lighting systems
• Automotive manufacturing
• Pumps and irrigation systems

How much does this MCB weigh?

This miniature circuit breaker has a light weight of 0.375kg, so it puts minimal strain on your DIN rail.

Standards

BS EN 60898
