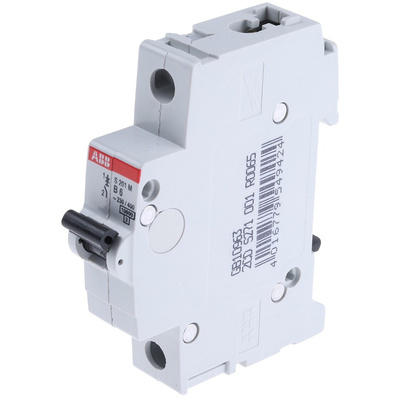

2CDS271001R0065 S201M-B6, ABB System Pro M Compact S200M MCB, 1P, 6A Curve B, 253V AC, 72V DC, 10 kA Breaking Capacity

Type B Single Pole 10kA - System pro M Compact

Type B characteristic offers instantaneous short circuit response level of 3-5 x normal rated current, making it suitable for circuits with moderate inrush currents such as filament lamps, heating loads and most domestic/small building protection applications.

DIN rail mounting
Complies with BS EN 60898
Operating temperature range of -25°C to +55°C
Standard 17.5mm width
Max. operating voltage: 440Vac, 60Vdc

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

ABB MCB, DIN Rail Mounting, Type B Tripping - S200M Series - 2CDS271001R0065

This type-B MCB from ABB has a breaking capacity of 10kA and trips between three and five times its 6A full-load current. It's well-suited to residential and commercial applications, where it helps protect equipment like lighting against short circuits and current overload. The unit reacts almost instantly to a fault, which means there's minimal risk of power spikes causing damage to downstream appliances. Compact dimensions of 88 (L) x 17.5 (W) x 76mm (D) make this a space-saving component that supports efficient circuit-board packing.

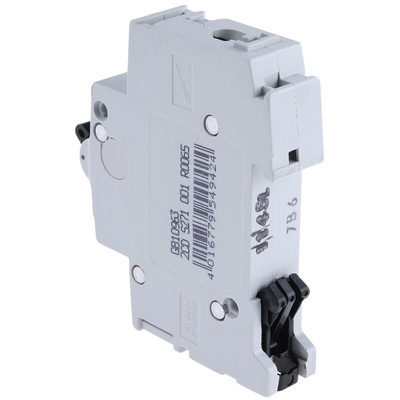

• Clips onto a DIN rail for time saving and tool-free installation
• Suitable for use in demanding locations, thanks to a wide operating temperature range between -25°C and +55°C
• Compatible with both AC and DC input voltage to best suit your application's needs
• Low power loss of 2W makes it energy-efficient
• Contact position indicator tells you the unit's operating status

Applications

• Retail centres
• Hotels and restaurants
• Office blocks
• Residential homes

What's the maximum operational voltage of this MCB?

This circuit breaker has a maximum operating voltage of 253V AC and 72V DC.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet - 2CDS271001R0065 S201M-B6

Catalogue - Miniature Circuit-Breakers

Product Environmental Profile
