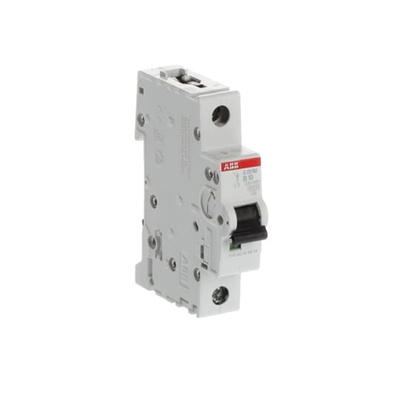

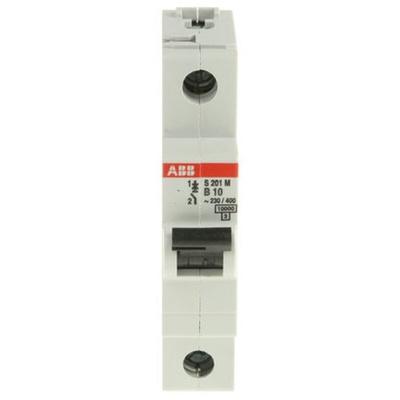

2CDS271001R0105 S201M-B10, ABB System Pro M Compact S200M MCB, 1P, 10A Curve B, 253V AC, 72V DC, 10 kA Breaking Capacity

ABB MCB, Screw Terminals, IP20 Rating - S200M Series - 2CDS271001R0105

Break a circuit without breaking a sweat with help from this MCB from ABB. Its type-B characteristics mean it trips instantly to cut power safely whenever the current supplied exceeds 35 to five times its 10A rating. This makes it a practical choice for residential settings as its quick tripping means it reacts promptly to shield people even if an overcurrent is slight. Thanks to a separate electromechanical mechanism, this all-rounder also offers short-circuit safeguards. A simple reset switch lets you get it back to work quickly after a fault for continued coverage of your circuit and any connected equipment.

Features & Benefits

• Versatile screw terminals let you create robust connections that shrug off jostling and vibration
• Operating temperature range of -25°C to +55°C, so suits harsh environments
• Accepts wires from 0.75 up to 35mm² for wide compatibility
• Impulse withstand rating of 4kV, so it tolerates even significant voltage surges to prevent nuisance tripping

Applications

• Residential lighting systems
• Light commercial facilities
• Resistive loads

Does this product come with ingress protection?

Yes. This product's IP20 rating means its touch-safe terminals pose no risk of electric shock.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
