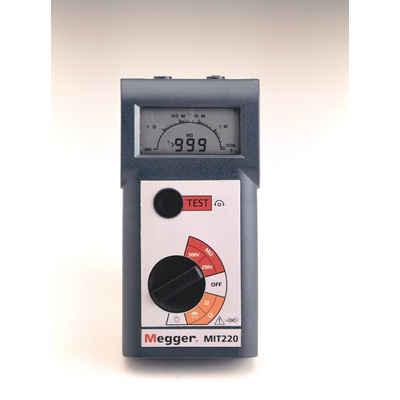

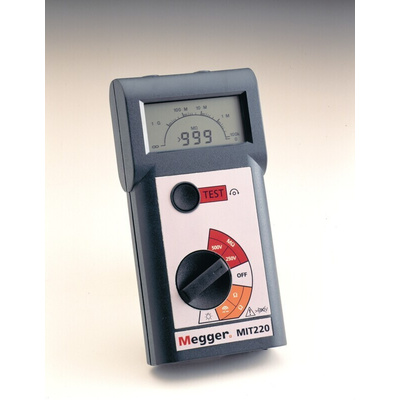

MIT220 Insulation & Continuity Tester

The MIT200 is one of the smallest insulation testers available on the market today. With options of a two voltage tester to a three voltage instrument, the MIT200 instruments offer a range of safety and operation features.

Insulation testing to 1000MΩ
Dual & triple test voltages models
Digital display with electronic analogue arc display helps to confirm insulation condition & to monitor fluctuating readings not apparent on the digital display
Continuity testing at 200mA down to 0.01ohms resolution
Automatic discharge of circuit under test
1mA test current at selected voltage range
Default voltmeter automatically switches in when the instrument is connected to a circuit with an AC or DC voltage greater than 25V
Autoranging analogue arc scale shows only the scale in use
Live circuit warning above 25V, also inhibits insulation & continuity tests above 50V
Lead resistance compensation on continuity
Hands free continuity testing Auto power-down after 5 minutes
Complies with IEC 1010-1 safety standard installation Category III, 600V phase to earth
Conforms to EN61557-1
Tests to BS7671, 713-02, 713-03, 713-04, 713-06, 713-08, 413-04-04

Note

RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty

Warning

When measuring voltages, the use of fused test leads is recommended for personal safety.

Supplied with

6 x AA alkaline batteries, test leads crocodile clips, carry case & instructions.

Megger Insulation Tester, LCD Screen, ±30% Maximum Insulation Accuracy - MIT200 Series - MIT220-EN

Ensure your wiring is safe and sound with this insulation tester from Megger. It senses insulation and continuity levels, so this unit pulls double duty when assessing safety levels in your circuit. A built-in voltmeter is on hand to read voltages between 25 and 600V AC/DC, so it keeps up with the electrical values of different systems. As the device's display combines a digital readout with an analogue meter, you'll get dual results that help to confirm readings and keep track of variations.

Features & Benefits

• Auto power-down helps to conserve battery
• Display shows if fuse is ruptured for quick user notification
• Insulation accuracy of up to ±30% at 1000MΩ for reliable operation
• Battery life of up to 3000 consecutive tests for long-lasting performance

Applications

• Repair workshops
• Electrical engineering
• Robotics
• Packaging facilities

What's the measurement range of this tester?

This tester has a wide insulation measurement range between 10kΩ and 1000MΩ and a continuity measurement range between 0.01Ω and 100Ω. This makes it suitable for detecting low and high insulation and continuity levels in your circuit.
