Megger MIT220, Insulation & Continuity Tester, 500V dc, 999MΩ, CAT III 300V UKAS Calibration, Измеритель сопротивления изоляции

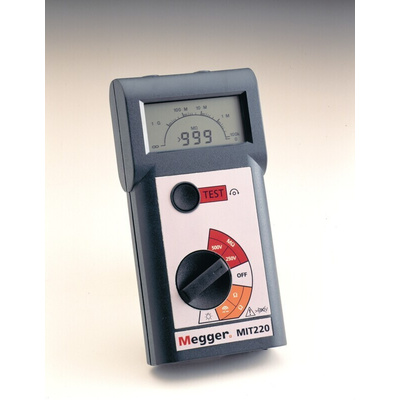

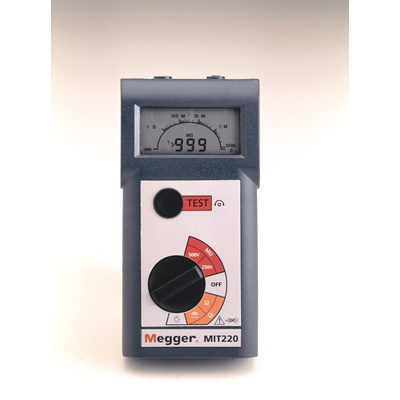

MIT220 Insulation & Continuity Tester

The MIT200 is one of the smallest insulation testers available on the market today. With options of a two voltage tester to a three voltage instrument, the MIT200 instruments offer a range of safety and operation features.

Insulation testing to 1000MΩ
Dual & triple test voltages models
Digital display with electronic analogue arc display helps to confirm insulation condition & to monitor fluctuating readings not apparent on the digital display
Continuity testing at 200mA down to 0.01ohms resolution
Automatic discharge of circuit under test
1mA test current at selected voltage range
Default voltmeter automatically switches in when the instrument is connected to a circuit with an AC or DC voltage greater than 25V
Autoranging analogue arc scale shows only the scale in use
Live circuit warning above 25V, also inhibits insulation & continuity tests above 50V
Lead resistance compensation on continuity
Hands free continuity testing Auto power-down after 5 minutes
Complies with IEC 1010-1 safety standard installation Category III, 600V phase to earth
Conforms to EN61557-1
Tests to BS7671, 713-02, 713-03, 713-04, 713-06, 713-08, 413-04-04

Note

RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty

Warning

When measuring voltages, the use of fused test leads is recommended for personal safety.

Supplied with

6 x AA alkaline batteries, test leads crocodile clips, carry case & instructions.

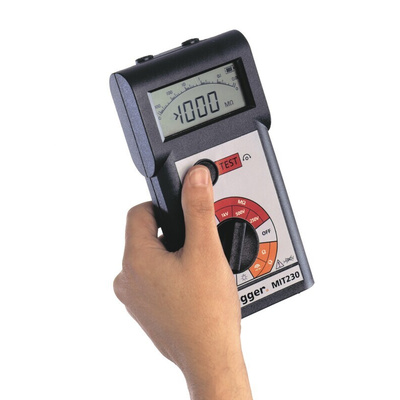

Megger Insulation and Continuity Tester

The Megger 1000Mohm insulation and continuity tester incorporates a range of safety and operation features in one of the smallest electrical insulation testers available. Its LCD offers a combination of digital readout and analogue display, with an analogue pointer response for evaluating circuit charge and discharge characteristics. The instrument housing is in tough ABS.
Supplied with
6 x AA alkaline batteries, test leads crocodile clips, carry case and instructions.

Features and Benefits

250V to 500V test voltage
Dual and triple test voltages models
Digital display with electronic analogue arc display helps to confirm insulation condition and to monitor fluctuating readings not apparent on the digital display
Continuity testing at 200mA down to 0.01ohm resolution
Automatic discharge of circuit under test
1mA test current at selected voltage range
Default voltmeter automatically switches on when the instrument is connected to a circuit with an AC or DC voltage greater than 25V
Auto ranging analogue arc scale shows only the scale in use
Live circuit warning above 25V, also inhibits insulation and continuity tests above 50V
Lead resistance compensation on continuity
Hands free continuity testing auto power down after 5 minutes
Operating temperature ranges between -10°C and 55°C

Applications

Domestic sites
Commercial sites
Industrial sites

Certifications

BS7671
BS76713-02
BS76713-03
BS76713-04
BS76713-06
BS76713-08
BS76413-04-04
EN61557-1
IEC 1010-1
IP40 rated

MIT200 Series Insulation and Continuity Testers User guide

MIT200 Series Digital/Analogue Insulation and Continuity Testers
