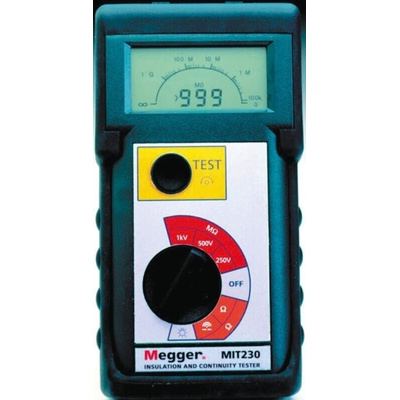

MIT230 Insulation & Continuity Tester

The MIT230 incorporates a range of safety and operation features in one of the smallest electrical insulation testers available. Its LCD offers a combination of digital readout and analogue display, with an analogue pointer response for evaluating circuit charge and discharge characteristics. The instrument housing is in tough ABS.

Features & Benefits

Insulation testing to 1000 MΩ
Dual & triple test voltages models
Digital display with electronic analogue arc display helps to confirm insulation condition & to monitor fluctuating readings not apparent on the digital display
Continuity testing at 200 mA down to 0.01 Ω resolution
Automatic discharge of circuit under test
1 mA test current at selected voltage range
Default voltmeter automatically switches in when the instrument is connected to a circuit with an AC or DC voltage greater than 25 V
Auto-ranging analogue arc scale shows only the scale in use
Live circuit warning above 25 V, also inhibits insulation & continuity tests above 50 V
Lead resistance compensation on continuity
Hands free continuity testing Auto power-down after 5 min
Complies with IEC 1010-1 safety standard installation Category III, 600 V phase to earth
Conforms to EN61557-1
Tests to BS7671, 713-02, 713-03, 713-04, 713-06, 713-08, 413-04-04

Note

RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty

Warning

When measuring voltages, the use of fused test leads is recommended for personal safety.

Supplied with

6 x AA alkaline batteries, test leads, crocodile clips, carry case, instructions
