RS PRO 70dB Through Hole Continuous Internal Piezo Buzzer, 13.7 (Dia.) x 7.6mm, 3V dc Min, 20V dc Max

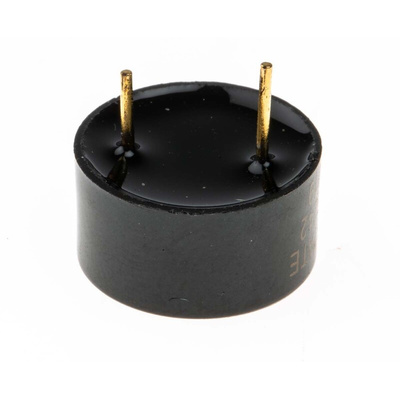

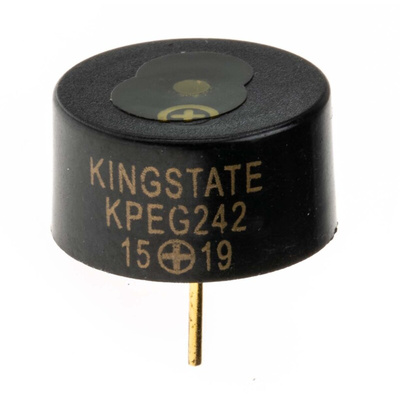

RS PRO 70 dB, Through Hole Continuous Internal Piezo Buzzer

This handy piezo buzzer produces a continuous tone, with a high sound output of 70 dB. It allows you to easily set up a sound tone on your electrical devices or circuits.

Boasting a frequency range of 3600 Hz to 4.6 kHz, this buzzer also has internal circuitry, which means that it can operate on a DC current. It's both washable and impact-resistant thanks to its circular housing, made of black noryl material. You can mount it directly on a printed circuit board, and the buzzer is wave-solderable for mass-production applications.

The piezo buzzer component complies with electrostatic control standards and is well-suited for use at temperatures ranging from -20°C to +70°C. As part of the RS PRO range, it meets our stringent quality and safety criteria. You can find it used in alarms or warning systems, as well as communications equipment and electronic cash registers.

Features and Benefits

• Continuous tone piezo buzzer
• Sound level of 70 dB
• Internal drive
• Through-hole mounting
• Black noryl housing for washability and impact resistance
• Diameter of 13.7 mm
• Height of 7.6 mm
• Supply current of 7 mA
• Frequency range of 3600 Hz to 4.6 kHz
• Minimum supply voltage of 3 V (DC)
• Maximum supply voltage of 20 V (DC)
• Minimum operating temperature of -20°C
• Maximum operating temperature of +70°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
