RS PRO 87dB Panel Mount Continuous Internal Buzzer, 42.5 (Dia.) x 42.5mm, 4V dc Min, 28V dc Max

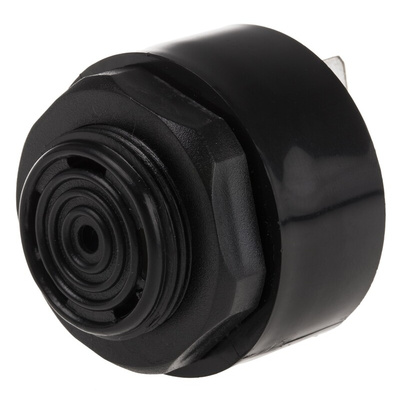

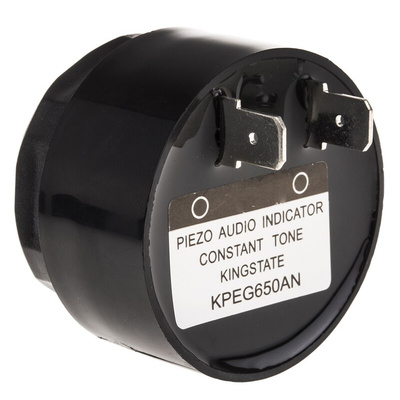

RS PRO 87dB, Panel-mount Continuous Internal Piezo Buzzer

Part of our RS PRO range, these internal piezo buzzers are ideal for connecting to industrial equipment and can operate between 4 V DC and 28 V DC. In addition to this high-voltage range, they offer loud and continuous sound.

These buzzer components can function between -30°C to +85°C and need only an 18 mA supply current. Piezo buzzers won't affect surrounding circuitry because they don't use magnets or coils to create sound. Their versatility makes them less likely to malfunction while connected to higher-voltage, heavy-duty equipment. Their 87 dB tone is continuous and clear, even in noisy workplaces.

They've been stringently tested to conform to the highest of standards, including the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards. With their compact size, robust construction and clearly audible volume, they're commonly used as sounders on industrial equipment.

Features and Benefits

• Piezo buzzer with a continuous tone
• Panel mounting
• Minimum supply voltage of 4 V DC
• Maximum supply voltage of 28 V DC
• 87 dB sound level
• Internal drive
• Diameter of 42.5 mm
• Height of 42.5 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 18 mA
• Minimum frequency of 2300 Hz
• Maximum frequency of 3.3 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Piezo Indicators - Panel Mounting Type

RS PRO Datasheet
