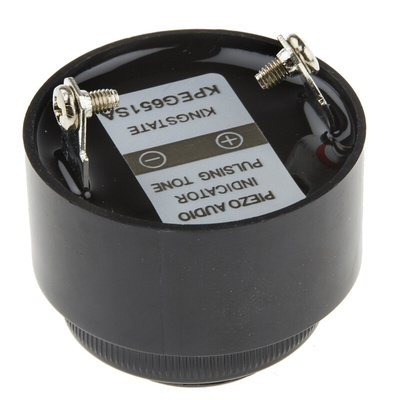

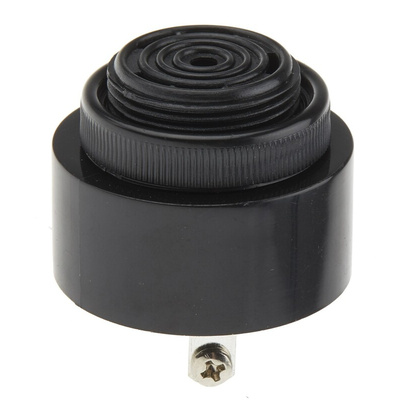

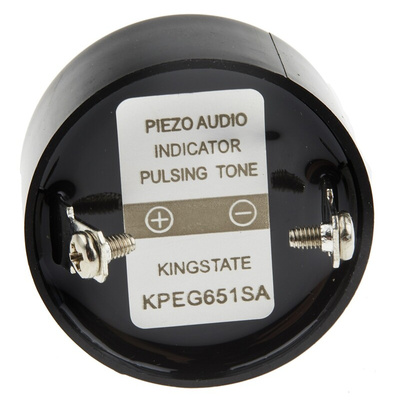

RS PRO 80dB Panel Mount Fast Pulse Internal Piezo Buzzer, 42.5 (Dia.) x 33mm, 6V dc Min, 28V dc Max

RS PRO 80dB, Screw-mount Slow Pulse Internal Buzzer

These versatile internal buzzers are part of our stringently tested RS PRO series. Compact in size, they operate at a wide voltage range and produce a clear sound.

These buzzers can function between 6 V DC to 28 V DC, and draw a 12 mA current, making them more reliable than lower current buzzers. They're used in a range of applications, including in most consumer appliances such as computers and microwaves. The buzzers emit a slow-pulsing 80 dB tone that's clearly audible, even from a considerable distance. What's more, they have a lower impact on surrounding circuitry compared to magnetic buzzers. Installing them is quick and simple thanks to their handy screw mounting.

Strict testing has ensured these piezo buzzers meet the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, which means they've been handled and packaged in a way that protects them from harmful electrostatic discharge. Application for these buzzers include car equipment, doorbells and fire alarms.

Features and Benefits

• Piezo buzzer with a slow-pulsed tone
• Screw mounting
• Minimum supply voltage of 6 V DC
• Maximum supply voltage of 28 V DC
• 80 dB sound level
• Internal drive
• Diameter of 42.5 mm
• Height of 33 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 12 mA
• Minimum frequency of 2300 kHz
• Maximum frequency of 3.3 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
