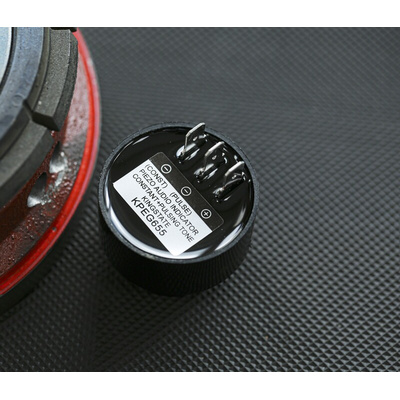

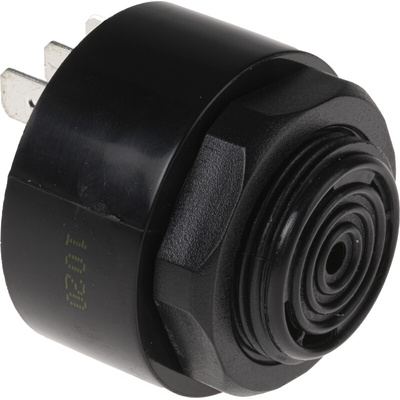

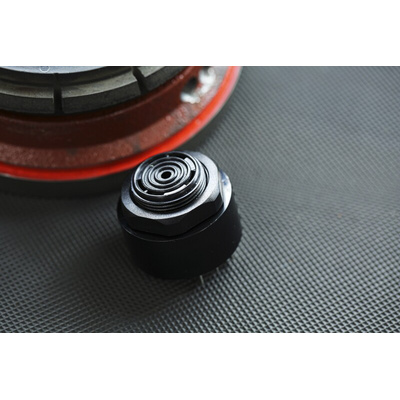

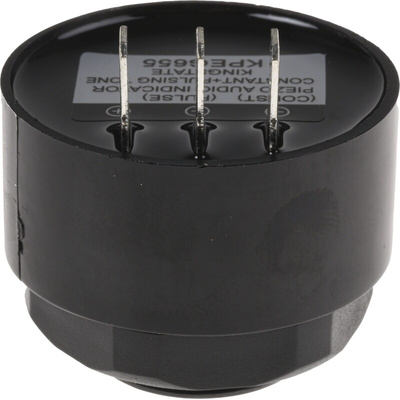

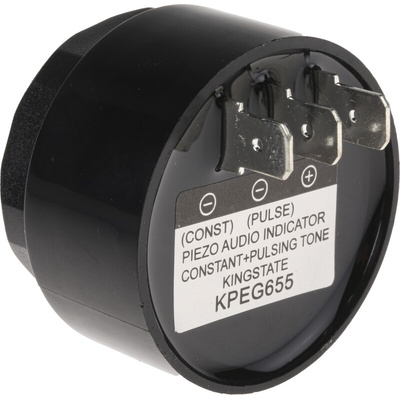

RS PRO 88dB Panel Mount Continuous, Fast Pulse Internal Piezo Buzzer, 42.5 x 33mm, 6V dc Min, 28V dc Max

5358382
Производитель: RS PRO
Цена за шт.
3744.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 88dB, Panel-mount Continuous Fast-pulse Internal Piezo Buzzer

Part of our trusted RS PRO series, these high-quality piezo buzzers offer a wide voltage range, high sound level and low power consumption in a compact design.

They can operate between 6 V dc and 28 V dc and only require a 16 mA supply current. This means they're compatible with most consumer appliances as well as being energy efficient. They produce a continuous and fast-pulsing 88 dB tone that can be clearly heard. As they don't use magnets or coils to create the sound, they have virtually no impact on surrounding circuitry. These space-saving piezo buzzer components are panel-mounted and simple to install.

The buzzers meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, meaning they're handled in a way that protects them from electrostatic discharge. You'll find them used in applications ranging from doorbells to fire alarms.

Features and Benefits

• Piezo buzzer with a continuous, fast pulse tone
• Panel mounting
• Minimum supply voltage of 6 V dc
• Maximum supply voltage of 28 V dc
• 88 dB sound level
• Internal drive
• Diameter of 42.5 mm
• Height of 33 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 16 mA
• Minimum frequency of 2300 Hz
• Maximum frequency of 3.3 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Высота:
33мм
Диаметр:
42.5мм
Максимальная частота:
3.3кГц
Максимальное напряжение питания:
28В пост. тока
Минимальная частота:
2300Гц
Минимальное напряжение питания:
6В пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30°C
Размеры:
42.5 x 33мм
Тип монтажа:
Крепление на панель
Тип привода:
Внутренний
Тип сигнала:
Continuous, Fast Pulse
Ток питания:
16мА
Уровень звучания:
88дБ
