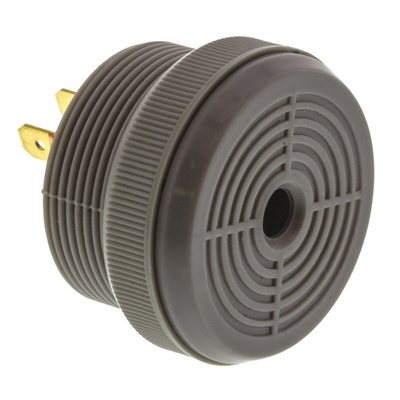

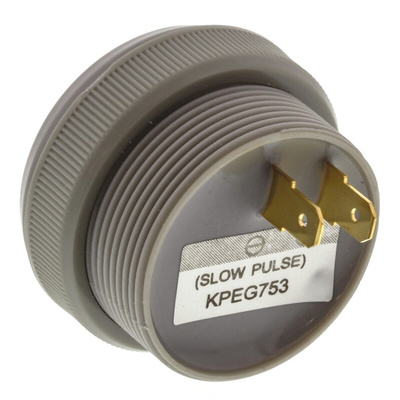

RS PRO 76dB Panel Mount Slow Pulse Internal Piezo Buzzer, 37.8 (Dia.) x 23.5mm, 6V dc Min, 28V dc Max

RS PRO 76 dB, Panel Mounting Slow Pulse Internal Piezo Buzzer

This piezo buzzer from RS PRO is ideal for panel mounting as an alarm. It enables you to achieve a high sound output and a broad frequency range from a low-current input.
The DC buzzer is fitted with an internal drive that means it needs no additional circuitry to generate sound, making life easier for systems engineers. It will produce a pulsed sound that's ideal for attracting attention. The faston terminals allow you to connect and disconnect the buzzer quickly and easily.
The buzzer conforms to American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic control standards, meaning it won't damage equipment via electrostatic discharge. Buzzers of this kind are commonly used as an alert system in a wide range of electronic devices.

Features and Benefits

• Dimensions of 37.8 (diameter) x 23.5 mm (height)
• Internal drive type
• Maximum frequency of 4.1 kHz
• Maximum operating temperature of +85°C
• Maximum supply voltage of 28 V DC
• Minimum frequency of 3.1 kHz
• Minimum operating temperature of -30°C
• Minimum supply voltage of 6 V DC
• Panel mounting type
• Sound level of 76 dB
• Supply current of 17 mA
• Slow pulse tone type
