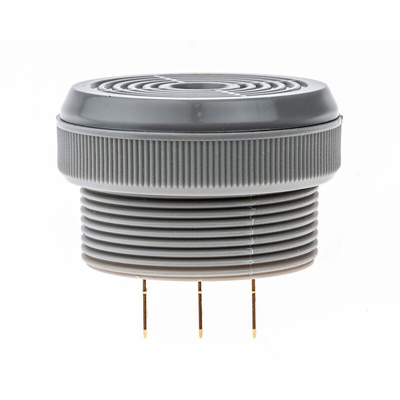

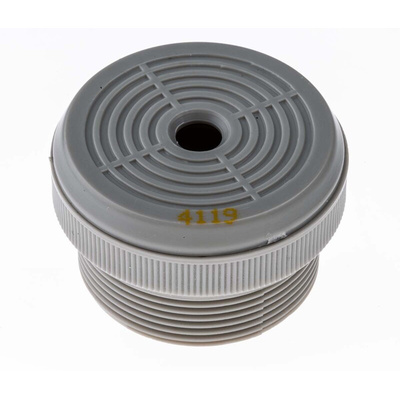

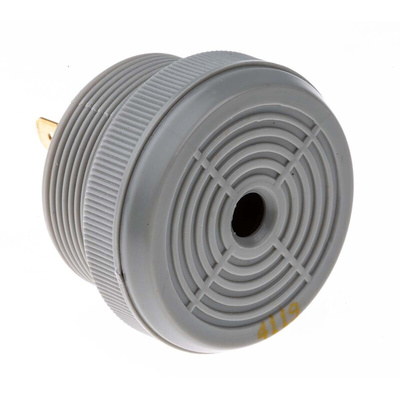

RS PRO 97dB, Panel Mount Continuous, Fast Pulse Internal Piezo Buzzer

Panel hole mount multifunction buzzer faston terminals

Panel hole mounting multifunction buzzer

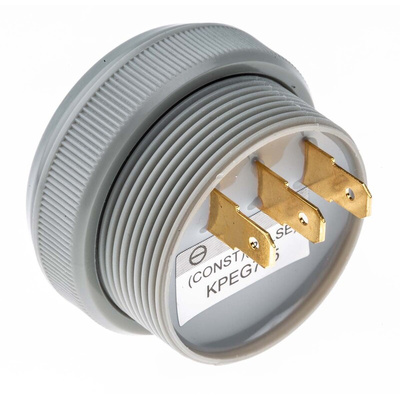

three or more 6.3 x 0.8mm faston connectors
High output levels
Internal circuitry for dc operation

RS PRO 97 dB, Panel-mount Continuous Fast-pulse Internal Piezo Buzzer

These high-quality piezo buzzers offer a wide voltage range, high sound level and low power consumption in a compact design. As part of our trusted RS PRO series, they've been stringently tested to the highest of standards.

Operating between 6 V DC and 28 V DC, they only require a 16 mA supply current. This makes them compatible with most consumer appliances in addition to being energy efficient. The buzzers produce a clear, continuous and fast-pulsing 97 dB tone. As they're panel-mounted, these space-saving piezo buzzer components are simple to install. They have virtually no impact on surrounding circuitry since they don't use magnets or coils to create sound.

The buzzers have been handled in a way that protects them from electrostatic discharge and meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. They can be found in a range of applications such as doorbells and fire alarms.

Features and Benefits

• Piezo buzzer with a continuous, fast pulse tone
• Panel mounting
• Minimum supply voltage of 6 V DC
• Maximum supply voltage of 28 V DC
• 97 dB sound level
• Internal drive
• Diameter of 31.5 mm
• Height of 19.5 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 16 mA
• Minimum frequency of 3100 Hz
• Maximum frequency of 4.1 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Data Sheet

Specification for approval
