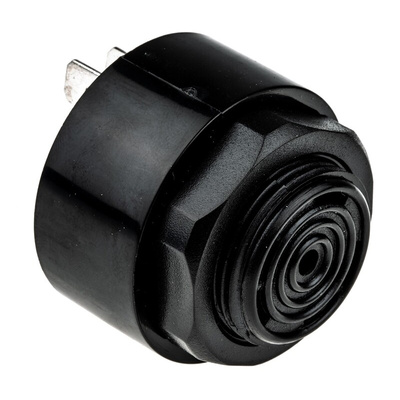

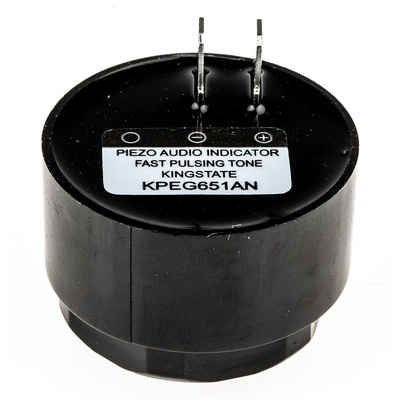

RS PRO 70dB, Panel Mount Fast Pulse Internal Piezo Buzzer

Panel hole mount pulsed tone buzzer faston terminals

Panel hole mounting pulsed tone buzzer
6.3 x 0.8mm faston connector size
High output levels
Internal circuitry for dc operation

RS PRO 70dB, Panel-mount Slow-pulse Internal Buzzer

These powerful internal buzzers offer a space-saving design combining a high voltage range and clear sound. With a broad operating temperature range of -30°C to +85°C, they're ideal for manufacturing environments that experience temperature variations.

The buzzers only need a 15 mA supply current and operate between 60 V DC and 250 V DC. This makes them unlikely to malfunction when connected to higher-voltage appliances. Thanks to a slow-pulsing 70 dB tone, they're easily heard without being shrill. The panel-mount units are simple to install, measuring in at only 42.5 mm in diameter. They're fitted with FASTON terminals, which mean that wires can be crimped onto them without the need to solder.

These internal buzzers have been thoroughly tested for performance and reliability as part of our RS PRO range. They're typically used in warning devices and alarms in environments such as factories, where there's high background noise.

Features and Benefits

• Piezo buzzer with a slow pulsed tone
• Panel mounting
• Minimum supply voltage of 6 V AC/DC
• Maximum supply voltage of 28 V AC/DC
• 70 dB sound level
• Internal drive
• Diameter of 42.5 mm
• Height of 33 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 15 mA
• Minimum frequency of 2.3 kHz
• Maximum frequency of 3.3 kHz
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Piezo Indicators - Panel Mounting Type
