RS PRO 98dB Panel Mount Continuous Internal Buzzer, 42.5 (Dia.) x 33mm, 4V dc Min, 28V dc Max

5358483
Производитель: RS PRO
Цена за шт.
3545.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

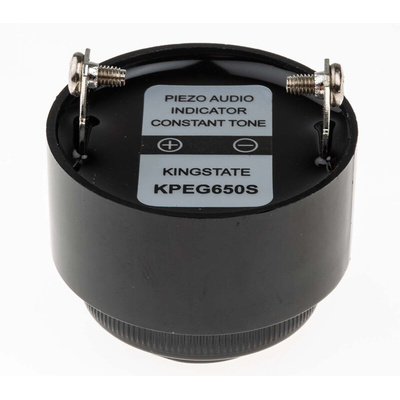

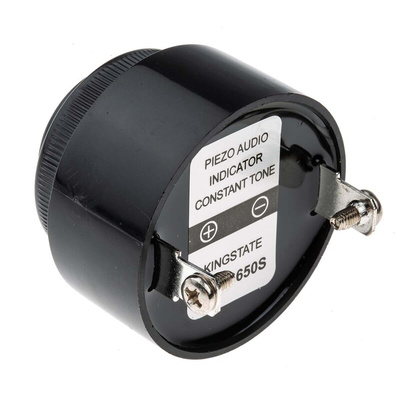

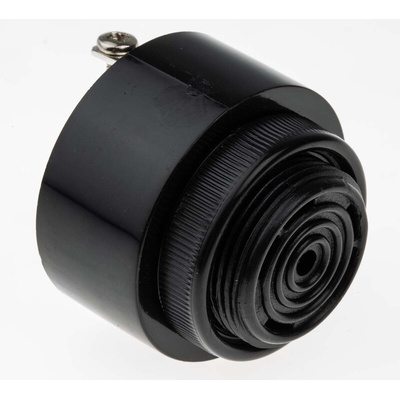

RS PRO 98dB, Panel-mount Continuous Internal Buzzer

From our tried-and-tested RS PRO series, these versatile piezo buzzers emit a crisp and clear sound. They offer a broad voltage range, loud and continuous tone and low power consumption.

Operating between 4 V DC and 28 V DC, the buzzers draw only a 2 mA current. As a result, they're compatible with most consumer appliances and are very energy efficient. They produce a continuous 98 dB tone that can be heard clearly from a distance, even in noisy conditions. This all comes in a space-saving design measuring 42.5 mm in diameter. As they're panel mounted, the buzzers are simple to install. They have screw terminals so wires can be connected without the need for soldering.

Conforming to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, these are well-suited for use as alarms and warning devices. Their loud and continuous tone is ideal for noisy offices or factory floors.

Features and Benefits

• Panel mounting
• Supply voltage range of 4 V dc to 28 V dc
• 98 dB sound level
• Internal drive
• Diameter of 42.5 mm
• Height of 33 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 2 mA
• Minimum frequency of 2300 Hz
• Maximum frequency of 3.3 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS Pro Continuous Tone Buzzer Datasheet
pdfRS PRO Datasheet
Высота:
33мм
Диаметр:
42.5мм
Максимальная частота:
3.3кГц
Максимальное напряжение питания:
28В пост. тока
Минимальная частота:
2300Гц
Минимальное напряжение питания:
4В пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30°C
Размеры:
42.5 (диаметр) x 33мм
Тип монтажа:
Крепление на панель
Тип привода:
Внутренний
Тип сигнала:
Continuous
Ток питания:
2 mA, 22mA
Уровень звучания:
98дБ
