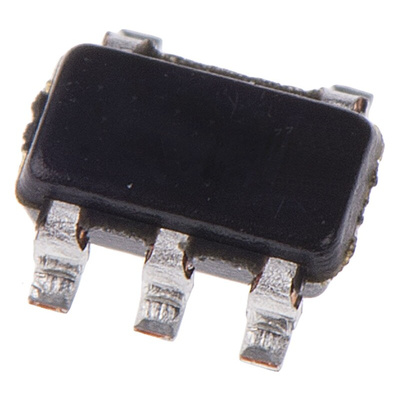

Texas Instruments LP2985AIM5-1.8/NOPB, 1 Low Dropout Voltage, Voltage Regulator 150mA, 1.8 V 5-Pin, SOT-23

LDO (Low Dropout) Linear Voltage Regulators, 150mA, 1.0V to 1.9V, Texas Instruments

The Texas Instruments LP2985LV-N is a 150-mA, fixed-output voltage regulator designed to provide high performance and low noise in applications requiring output voltages ≤ 2 V.

Wide Supply Voltage Range: 2.2 V to 16 V
Ensured 150-mA Output Current
Requires Minimum External Components
Stable With Low-ESR Output Capacitor
< 1-μA Quiescent Current When Shut Down
Low Ground Pin Current at all Loads
Output Voltage Accuracy 1% (A Grade)
High Peak Current Capability
Low ZOUT: 0.3-Ω Typical (10 Hz to 1 MHz)
Over temperature/Overcurrent Protection
−40°C to +125°C Junction Temperature Range

LDO (Low Dropout) Linear Voltage Regulators, Texas Instruments

A range of Texas Instruments Low Dropout (LDO) Linear Voltage regulators. LDO voltage regulators are able to operate with a small input-output differential making them suitable for a variety of applications where conventional regulators would be unsatisfactory. The latest generation of LDO regulators offers low quiescent current levels and reduced output noise together with excellent line voltage regulation and high PSRR.
