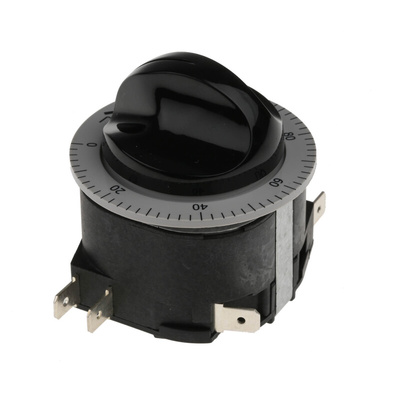

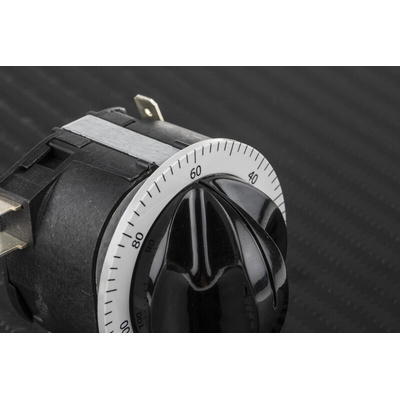

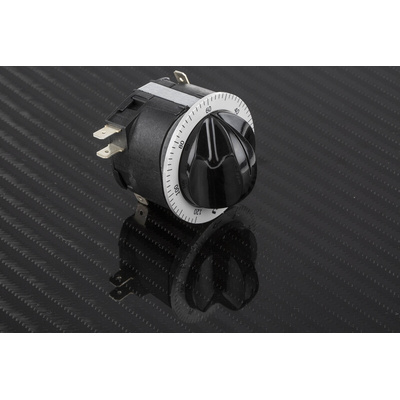

RS PRO Panel Mount Timer Relay, 250V ac, 0 → 120min, DPDT

RS PRO Mechanical Run-back Timer

Features and Benefits

• Can be manually reset during the run-back period


• DPDT contact configuration


• Contact rating: 16A @ 250Vac resistive load

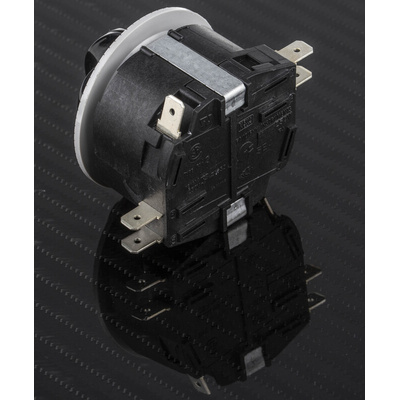

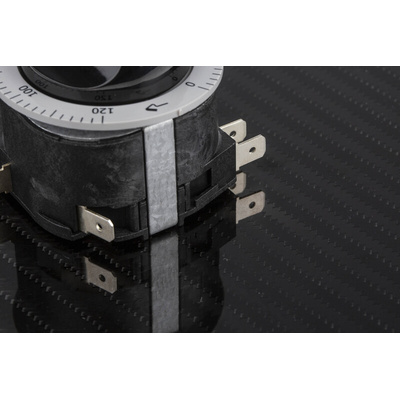

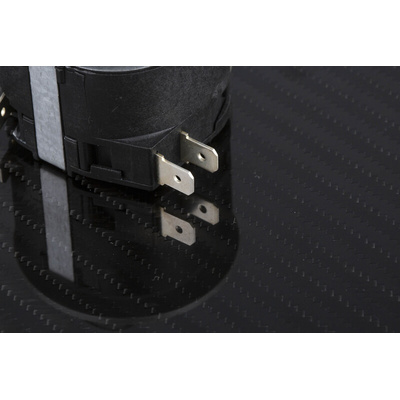

• Connection via 6·35 x 0.8 mm terminals suitable for 0.25in receptacles


• Minimum panel thickness (with screws provided) of 3.5mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

This is a mechanical timer which does not need an external voltage supply

Dimensional Drawing
