70002671 M22-D4-S-X7+M22-A4, Eaton RMQ Titan M22 Series Black Momentary Push Button Head, 22mm Cutout, IP66

4 Direction Pushbutton

4 direction movement/position
Blank or white directional arrow versions
Arrow versions have non-mechanically interlocked buttons or opposing mechanically interlocked buttons
Contact module (front mounting type) and fixing adapter (536-3889) required for electrical operation

Standards

IEC/EN60947.

Approvals

UL, CSA.

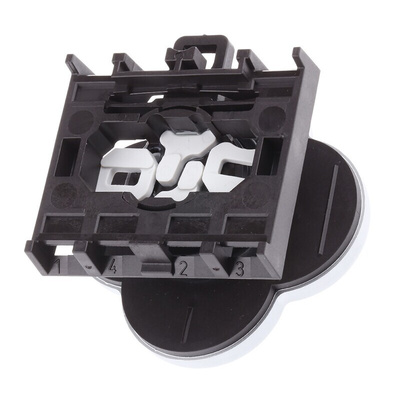

Eaton RMQ Titan Black Push Button Head, 55mm Diameter, 22mm Cutout - RMQ-Titan / M22 Series - 70002671M22-D4-S-X7+M22-A4

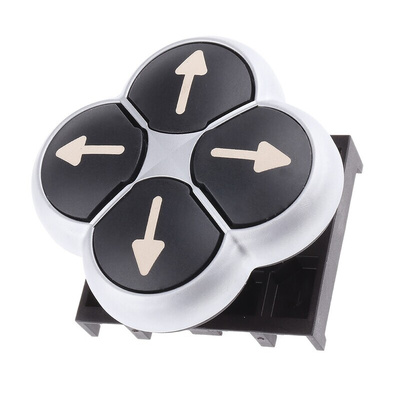

Use this push button head from Eaton as part of your equipment's control system. It's a momentary device, which means that it has a spring return and is only functional for as long as you're pushing it. The unit has four command positions so it's clear how to control movement in four directions. These functions are marked in white arrows for easy identification. A push button like this is an essential tool for the manual control of material-handling equipment.

• Resistant to up to 30g of mechanical shock so it's suitable for use on vibrating equipment
• Plastic front ring is durable and able to withstand impact for long-term use
• IP66 rating indicates that it's dust-tight and resistant to high-pressure water jets
• Broad operating temperature range of -25°C to +70°C for use in challenging conditions

What's the mechanical life of this push button?

This unit has a mechanical life of 200,000 operations to assure you of long-term performance.

Does this push button come with a fixing adapter?

Yes, it comes with a fixing collar complete with a contact block and a 10A fuse for short-circuit protection.

Note

Eaton formerly known as Moeller

Brochure

Fixing Adaptor 4 Positions Data Sheet

Push-button 4 way spring return Data Sheet

M22-D4-S-X7+M22-A4-Datasheet
