70002672 M22-DI4-S-X7+M22-A4, Eaton RMQ Titan M22 Series Black Momentary Push Button Head, 22mm Cutout, IP66

4 Direction Pushbutton

4 direction movement/position
Blank or white directional arrow versions
Arrow versions have non-mechanically interlocked buttons or opposing mechanically interlocked buttons
Contact module (front mounting type) and fixing adapter (536-3889) required for electrical operation

Standards

IEC/EN60947.

Approvals

UL, CSA.

Eaton RMQ Titan Black Push Button Head, 55mm Diameter, 22mm Cutout - RMQ-Titan / M22 Series - 70002672 M22-DI4-S-X7+M22-A4

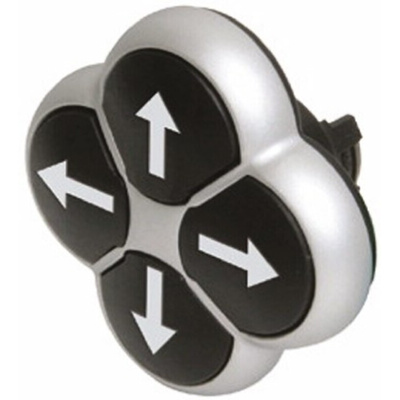

Manually operate a switch, machine or device using this push button head from Eaton. It's a momentary button, so it only activates functions as long as it's held down. It has four buttons with up, down, left and right direction arrows. This makes it useful for simplifying the operation of machines such as cranes, hoists and other handling equipment. The modular design of this button head means it's straightforward to attach it to a device or mount it on a panel.

• Body and fixing collar are included with the button for simple installation
• IP66 rating means it's dust-tight and waterproof, for use in demanding environments such as factories and warehouses
• Made from plastic that's resistant to corrosion from salts, chemicals and oils, so suited to food processing and marine applications

What size is this push button head?

The button has a diameter of 55mm, making it suitable for the one-handed operation of machines. It has a cutout diameter of 22mm, so it fits a standard slot on your panel.

Note

Eaton formerly known as Moeller

Brochure

Fixing Adapter M22-A4 Data Sheet
