KAPTON FILM 304X200X0.05MM, DuPont Kapton HN Thermal Insulating Film, 304mm x 200mm x 0.05mm, Пленка

DuPont Insulating Film

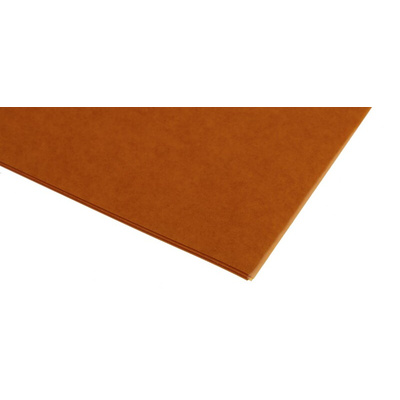

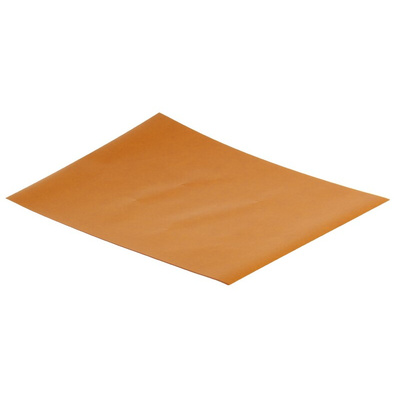

The DuPont insulating film has a length of 304mm, a width of 200mm and thickness of 0.05mm. It is designed to heat any surface for various heating applications. This Kapton HN insulating film can be laminated, metallized, punched, formed, or adhesive-coated. This insulating film possesses a unique combination of properties ideal for a variety of applications in many different industries.

Features and Benefits

Density is 1.42g/cc
Excellent physical, electrical and mechanical properties maintained over a wide temperature range, up to 400°C
High electrical insulation at elevated temperatures is 1012 ohm-cm at 200°C
Thermal conductivity is 0.16W/mK

Applications

Automotive diaphragms sensors and manifolds
Electrical insulation
Electronic parts
Etching
Fibre optics cable
Insulation blankets
Insulation tubing
Mechanical parts
Pressure sensitive tape
Shims

Certifications

ASTM D-5213 (type 1, item A)
IPC 4202/1

General Data Sheet
