800FM-FX, Allen Bradley 800F Series Black, Blue, Green, Red, White, Yellow Momentary Push Button Head, 22mm Cutout, IP65

Pushbutton Operators

Finished with corrosion resistant anodised plating
Low front of panel profile

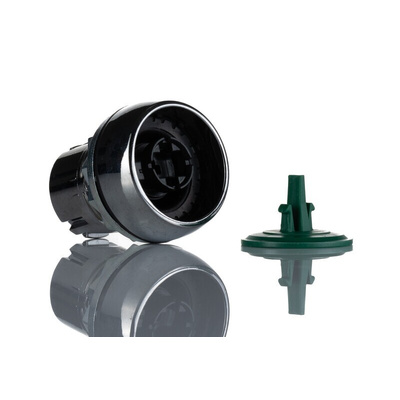

Multi-coloured types contain 1 cap of each colour

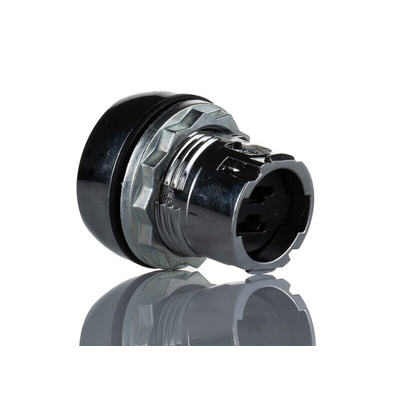

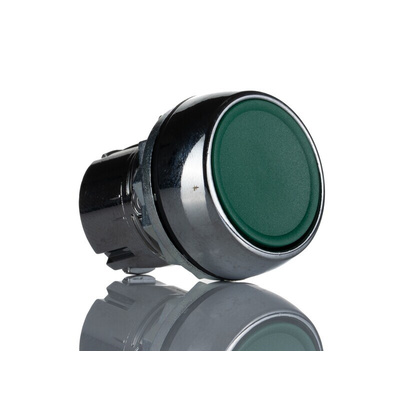

Allen Bradley Push Button Head, Metal Material, 22mm Cutout Diameter - 800FM-FX

Don't push your luck when it comes to safety in your workplace. Choose this push button head from Rockwell Automation's Allen Bradley range for quick control over potentially dangerous machinery. The momentary actuation style means it only works when you actively press it down, so it's a reliable option for short-term on/off operations. The device is made from metal for resistance to corrosion and impact, so it won't buckle under pressure. It's a versatile choice thanks to its multiple cap colour options that enable you to colour-code the unit according to its function. Screw terminals ensure vibration-proof connections that won't lose their grip when things get shaky.

Features & Benefits

• IP65 rating means it's dust-tight and resistant to low-pressure water jets
• Standard cutout diameter of 22mm to maximise space on your panel
• Flush design reduces the risk of accidental activation for increased safety

Standards and Certifications

• UL
• CSA
• CE
• CCC

Can I use this button head in harsh environments?

Yes. This unit has a broad operating temperature range between -25°C and +70°C, so it's suitable for use in demanding industrial environments.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability

800f Pushbutton Catalogue
