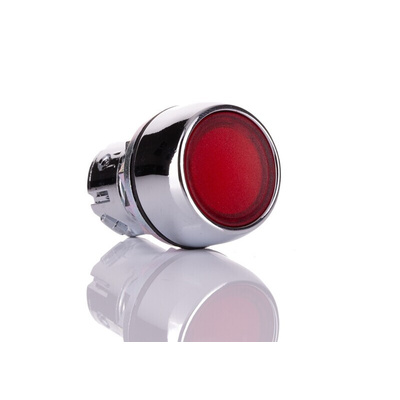

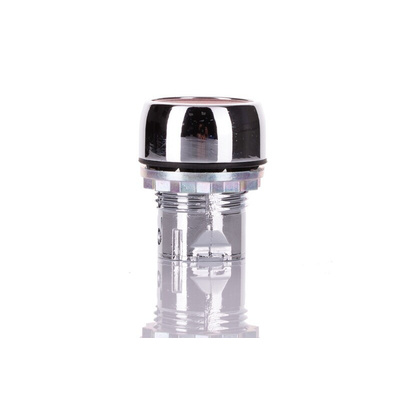

800FM-LFA4, Allen Bradley 800F Series Red Illuminated Alternate Push Button Head, 22mm Cutout, IP65

Pushbutton Operators

Finished with corrosion resistant anodised plating
Low front of panel profile
Multi-coloured types contain 1 cap of each colour

Allen Bradley Push Button Head, 240V AC/24V DC Maximum Voltage, IP65 Rating - 800FM-LFA4

Install this red push button head from Rockwell Automation's Allen Bradley range with a switch to start or stop your machinery. It lights up to show when equipment is running, which prevents possible injuries and helps with early problem detection to reduce downtime. The highly-visible cap is easy to locate on consoles, making it suitable for use with emergency switches. Thanks to its solid modelling, this component is robust and durable. A 22.5mm diameter allows for compatibility with industry-standard panels for easier installation. It's suitable for instrumentation boards, commercial appliances and access control systems.

• Anodised plating withstands corrosion for a longer service life
• Wide operating temperature range between -25°C and +70°C for use in challenging conditions
• IP66 rating indicates the unit is dust-tight and protected against high-pressure water sprays for outdoor use

Standards and Certifications

• CE marked
• UL listed
• CSA
• CCC

Does this push button head have a seal?

Yes, a gasket seals the panel and mounting hole to support reliable performance by helping to secure the unit. This means it stays in place, even in setups where vibration and impact are likely.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
