800FM-JM2, Allen Bradley Toggle Switch, Panel Mount, On-Off-On, DPST, Тумблер

Toggle Switch Operators

Round metal operator (IP66, Type 4//13)
Available in 2 or 4 position maintained or momentary switching actions

Note

Cannot use N/C or N/O Early Make contact blocks with 4-position toggle switch.

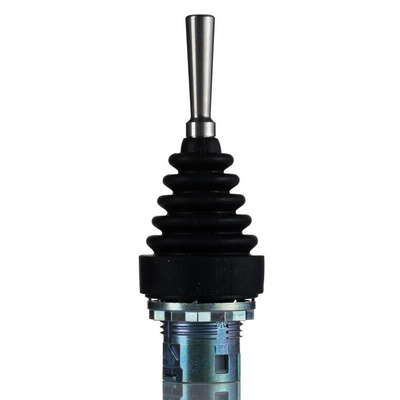

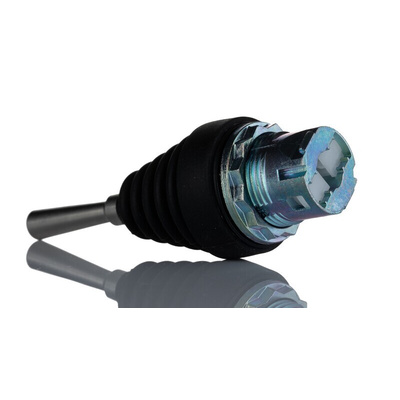

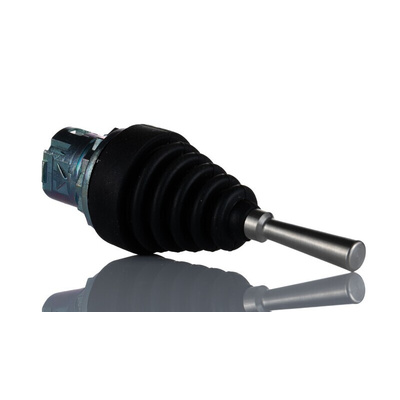

Allen Bradley Toggle Switch, Metal Actuator Material, Panel Mounting - 800FM-JM2

Take power into your own hands with this toggle switch from Rockwell Automation's Allen Bradley range. It's a two-position maintained switch that gives you on-off-on functionality, so you can keep close control over your equipment. The actuator is made of strong metal that goes the extra mile by providing durability and resistance to corrosion in outdoor and heavy-duty environments. As it has an IP66 rating, you can rest assured this device is protected against dust and high-pressure water jets.

Features & Benefits

• Panel mounting makes installation a cinch
• Long mechanical lifespan of 100,000 cycles means this device is with you for the long haul
• DPST contact configuration provides versatility as both circuits are isolated from each other
• Wide operating temperature range of -25°C to +70°C means it's suitable for use in demanding environments

Standards and Certifications

• CE
• UL
• CSA
• CCC
• UR

Is this toggle switch supplied with a silicone boot?

Yes, a silicone boot is supplied with this toggle switch. It protects the toggle bat from damage caused by contaminants like dust or condensation, so boosts reliability and performance.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability

Brochure - 800F 22 mm Push Buttons
