800FM-JR2, Allen Bradley Toggle Switch, Panel Mount, (On)-Off-(On), DPST, Тумблер

Toggle Switch Operators

Round metal operator (IP66, Type 4//13)
Available in 2 or 4 position maintained or momentary switching actions

Note

Cannot use N/C or N/O Early Make contact blocks with 4-position toggle switch.

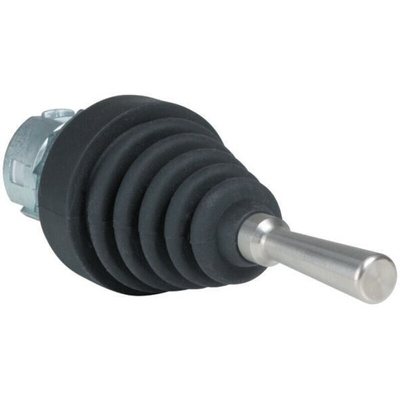

Allen Bradley Toggle Switch, 2 Positions, Panel Mount - 800FM-JR2

Achieve close control over your equipment with this toggle switch actuator from Rockwell Automation's Allen Bradley range. As it's a momentary switch, it returns to a neutral position once released, so it's suitable for controlling moving machinery. The device has two switching positions that control two different circuits to reduce the number of switches on your panel. With its 73mm long handle, the unit is easy to operate, even if you're wearing gloves, for safe use in heavy-duty environments.

• Chrome-plated actuator is corrosion-resistant, so suitable for outdoor use
• IP66 rating indicates it's dust-proof and water-tight against high-pressure jets
• Mechanical lifespan of 100,000 cycles for a long service life
• Flexible silicone boot for easy switching

Standards and Certifications

• UL
• CE
• EN 60947

What size cut-out do I need to mount this toggle switch?

This actuator adheres to industry-standard 22mm push button specifications. This means you'll need a 22mm diameter cut-out to mount this device.

Is this actuator supplied with a contact block?

No, you'll need to supply your own contact block to use this toggle switch.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
