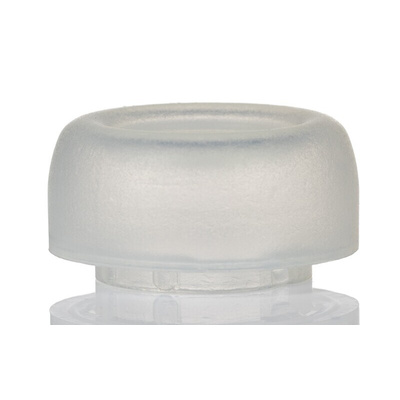

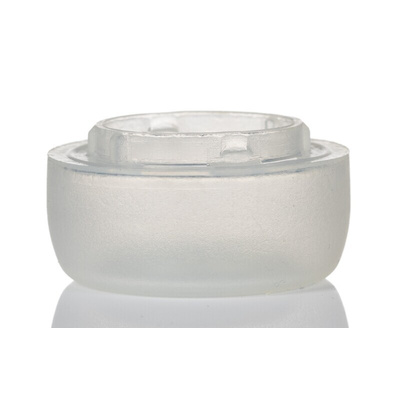

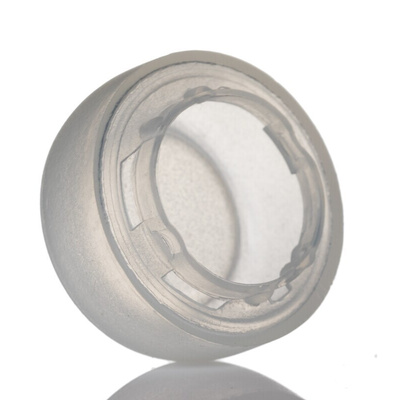

800F-AB7, Allen Bradley Push Button Cap for Use with 800F Series

Protective Boots

Suitable for flush or extended pushbuttons and 2 or 3 multi-function operators
Can be used on illuminated and non-illuminated versions
Manufactured from clear silicone

Allen Bradley Push Button Cap For 800F Series, Flush Mounting, Clear Silicone Material - 800F-AB7

Are tough conditions wearing your push buttons out? Keep them covered with this cap from Rockwell Automation's Allen Bradley range. It seals up the sides of your switching device, helping to shut the door on damaging corrosion. With its IP69K rating, the unit stands up to dust and hot, high-pressure water jets to shield your switch in settings where steam-cleaning takes place. You can trust this component to stay out of your way thanks to its flush mounting style. As it's transparent, the boot's a go-to cover for both illuminated and opaque push buttons.

Features & Benefits

• Durable silicone body resists wear, helping to provide long-lasting protection
• Installs into standardised 22mm push button cutouts to easily fit into existing control panels
• Works in operating temperatures between -25°C and +70°C, so shrugs off harsh industrial conditions

Standards and Certifications

• CSA-approved
• UL 508
• UKCA-conformity marked

How do I mount this push button cap?

You should take off any other protective boots from your push button before mounting this product. Once your switch is ready, the cap simply slots over your device's actuator and you're ready to go.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
