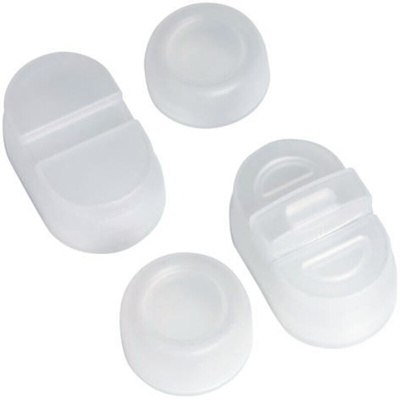

800F-AUB2, Allen Bradley Push Button Cap for Use with 800F Series

Protective Boots

Suitable for flush or extended pushbuttons and 2 or 3 multi-function operators
Can be used on illuminated and non-illuminated versions
Manufactured from clear silicone

Allen Bradley Push Button Cap For 2-Position Switch, IP69K Rating, Clear Silicone Material - 800F-AUB2

Protect your switching device against the pressures of the shop floor with this push button cap from Rockwell Automation's Allen Bradley line. It plugs up the space around a switch (such as 800-3552) to stop damaging corrosion in its tracks. The unit is built to withstand intense steam-clean conditions and carries an IP69K protection rating, meaning it's dust-tight and resistant to hot, high-pressure water jets. As it easily fits around your push button's actuator, mounting is quick and simple. The boot works with two-function push buttons, so it's a go-to component for your moving equipment's actuators.

Features & Benefits

• Hard-wearing silicone body helps ensure long-lasting switch protection
• Resists corrosion, so it won't perish in damp environments
• Performs in operating temperatures between -25°C and +70°C, ensuring your switches stay the course in challenging conditions

Standards and Certifications

• CE-marked
• UKCA-conformity marked
• UL 508

Can I use this push button cap with illuminated switches?

Yes, this product's silicone body is transparent, meaning it lets through light from illuminated push buttons to help ensure they keep standing out on your control devices.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
