RS PRO Brushless DC Motor, 24 V dc, 0.75 Nm, 4000 rpm, 5mm Shaft Diameter, Двигатель

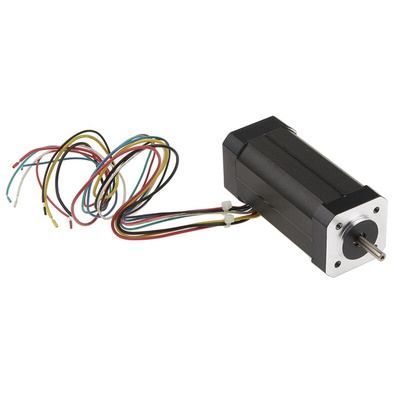

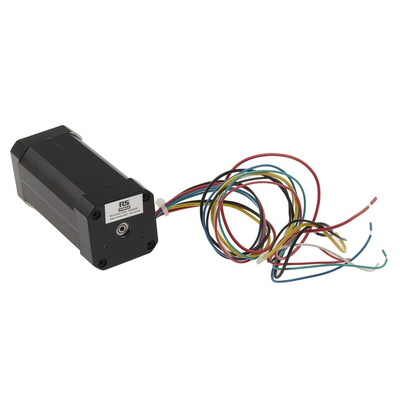

RS PRO Brushless DC Motor, 24 V dc, 0.75 Nm, 4000 rpm, 5 mm Shaft Diameter

This RS PRO brushless DC motor is an electric motor designed to work without brushes. It uses an electronic motor controller and Hall-effect sensors to deliver reliable speed to your machine.

This motor is built from high-quality materials that provide efficient power and consistent torque output. The simple design of a brushless motor means it lasts longer, requires less maintenance and is quieter than a brushed motor. Sensors provide speed-control feedback to give you superior performance and high efficiency.

This device has been stringently tested for quality and safety. It's more durable and reliable than conventional permanent-magnet designs, and Class B insulation means it can withstand temperatures up to 130°C. A brushless DC motor is generally found in devices that require effective speed control. It's particularly useful in heavy-duty domestic applications where reliability is key, such as in washing machines, vacuum cleaners and air conditioners.

Features and Benefits

• Supply voltage of 24 V DC
• Brushless DC motor type
• Output speed of 4000 rpm
• Shaft diameter of 5 mm
• Maximum output torque of 0.75 Nm
• Length of 100 mm
• Width of 42 mm
• Depth of 42 mm
• Current rating of 20 A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
