RS PRO 24 Port LC Multimode Duplex Fibre Optic Patch Panel With 24 Ports Populated, 1U, Коммутационная панель

Sliding Patch Panels - SC/ST

19in. 1U metal patch panel
Pre-loaded with multimode adaptors and splice cartridge
19in. angled bracket, screw connection and cable support included
Drawer can be removed for splice work or hung at a 45° angle
Cable entry options 2x20mm / 4x10mm gland holes
Fastening lug for multifibre buffer or pigtails

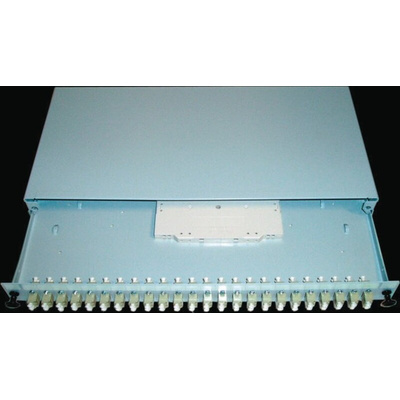

RS PRO 24 Port LC Multimode Duplex Fibre Optic Patch Panel With 24 Ports Populated, 1 U

This RS PRO LC (lucent connector) multimode fibre optic patch panel has 24 populated ports and serves to order and separate fibre optic wires. Use it to relay data signals, terminate your fibre optic cables or cross-connect individual fibres to your desired equipment.


Its versatile sliding tray panel can be moved to the side or lowered to a 45° angle, giving you a working platform for precise and easy installations. It's simple to clearly label which connections and fibres transfer data to which equipment or areas using the write-on labelling area. Cable entry from each side lets you order and align wires to prevent them from tangling and distorting data transfers.


The panel conforms to the Restriction of Hazardous Substances (RoHS) requirements, meaning it contains only minimal amounts of any harmful materials. It's commonly used to distribute fibre optic signals in data centres or teaching facilities.

Features and Benefits

• LC connector type


• Dimensions of 44 (height) x 483 (width) x 200 mm (depth)


• 24 populated ports


• Sliding panel type


• Rack height of 1 U


• Duplex


• Multimode

RS PRO Datasheet
