RS PRO SC APC Single Mode 5dB Attenuator, Аттенюатор

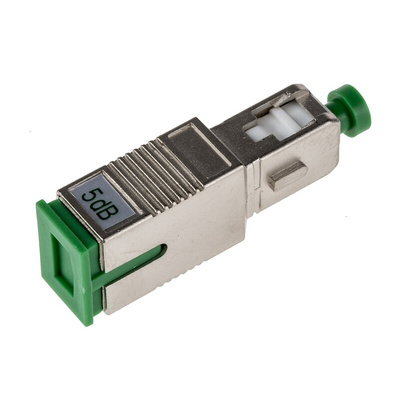

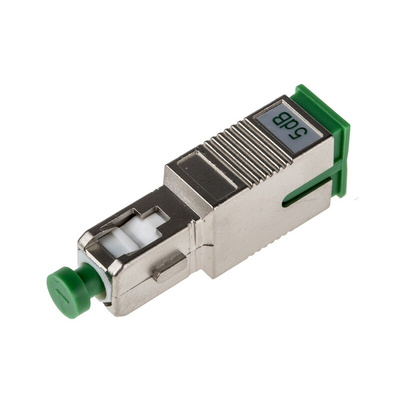

RS PRO SC APC Single Mode 5 dB Attenuator

This RS PRO single-mode 5 dB attenuator reduces optical power launched onto a photodetector. Its precise construction is designed to give attenuation over a wide range of wavelengths. The plug port lets you connect the attenuator to fibre jumpers and insert them directly into an adapter.
You can rest assured this product is constructed to meet safety standards and complies with the requirements of the Restriction of Hazardous Substances (RoHS) so it contains only minimal amounts of any hazardous substances. The attenuator also has a three-year warranty, assuring you the product will last through heavy use.
The device is often used in telecommunication networks, fibre optic sensors and test and measurement systems to provide accurate attenuation. It maintains a flat response over all wavelengths for increased adaptability to your system requirements.

Features and Benefits

• Attenuation of 5 dB
• APC (angled physical contact) connector polish
• SC (subscriber connector) type
• Length of 35 mm
• Width of 12.7 mm
• Maximum operating temperature of +85°C
• Minimum operating temperature of -40°C
• Single mode

RS PRO Datasheet
