RS PRO E-2000 to Unterminated Simplex Single Mode OS1 Fibre Optic Cable, 9/125μm, Yellow, 1m, Кабель

RS Pro Pigtails

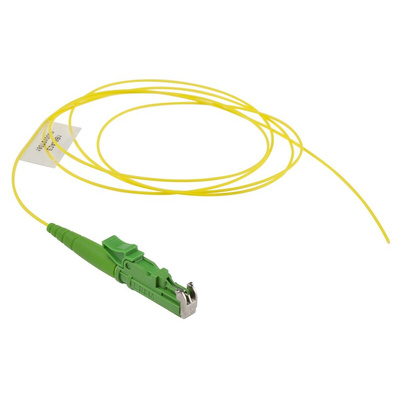

RS Pro compact pigtails are fibre optic cables with a connector that has been installed in the factory at one end and an unterminated fibre at the other. The connector on the pigtail is linked to the required equipment and the unterminated end is melted with optical cable fibres or can be stripped and fusion sliced to a single fibre of a multi-fibre trunk.
The fibre cables are designed to patch into an already existing line easily.
These RS Pro pigtails come as single or multi-mode.

Where would you use a pigtail?

The RS Pro pigtails are an ideal solution to bridge a crucial junction in a fibre optic network. They are normally found in fibre optic management equipment such as ODF, in fibre terminal boxes and distribution boxes.

Note

Each pigtail has a test certificate and is provided with an ID number

536-8519 is a single mode pigtail with a green E2000 APC connector.

Features and Benefits

• Easy to install
• The shutter opens automatically when plugged into an adapter
• The shutter closes automatically when removed, helping to keep out impurities
• Push-pull latching that clicks when fully inserted correctly
