88970041, Crouzet Millenium 3 Series Logic Module, 24 V dc Supply, Relay Output, 8-Input, Analogue, Digital Input, Логический модуль

Crouzet Logic module

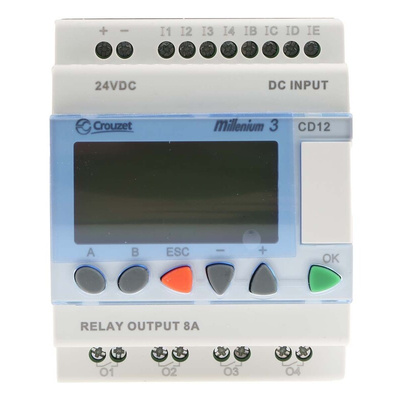

The Crouzet Millennium 3 series logic module is 8 digital inputs (include 4 analogues inputs with 10-bit resolution) and 4 relay outputs. It has a large memory for applications that require larger space. This logic module’s voltage rating is 24VDC and output current rating is8A. This
DIN rail mounting type logic module has a screw termination method.

Features and Benefits

Green LCD backlit display with alphanumeric configuration
Operating temperature ranges between -20°C and 55°C
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Expandable version
Modbus communication 2 x 8 words with read\\write access
Network creation option communication between seven millennium 3 units

Applications

Automatic washing equipment
Agricultural machinery
Air conditioners Heating systems
