88970042, Crouzet Millenium 3 Series Logic Module, 24 V dc Supply, Transistor Output, 8-Input, Analogue, Digital Input, Логический модуль

Crouzet Logic module

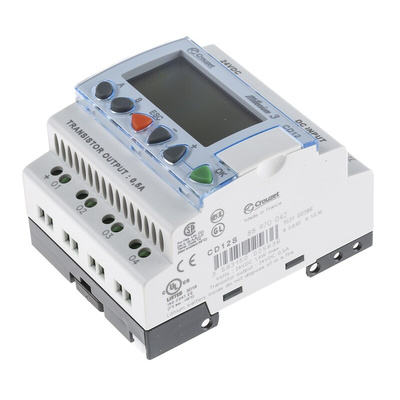

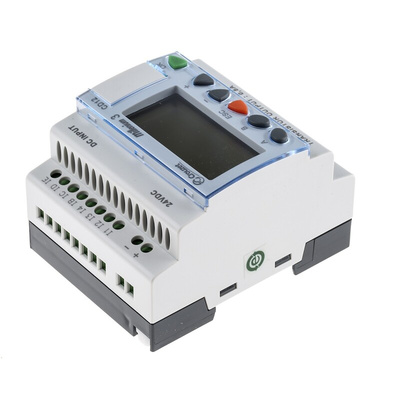

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version CD12 series with 8 digital (including 4 analogues) inputs and 4 solid-state outputs of 0.5A current rating (including 1 PWM). This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24VDC.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming.

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Green LCD with 4 lines of 18 characters and configurable backlighting
Selective parameter setting: you can choose the parameters that can be adjusted on the front panel
Analogue inputs 0-10 VDC, Potentiometer (0-20 mA/Pt100 with converters)
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems
