88970161, Crouzet Millenium 3 Series Logic Module, 24 V dc Supply, Relay Output, 16-Input, Analogue, Digital Input, Логический модуль

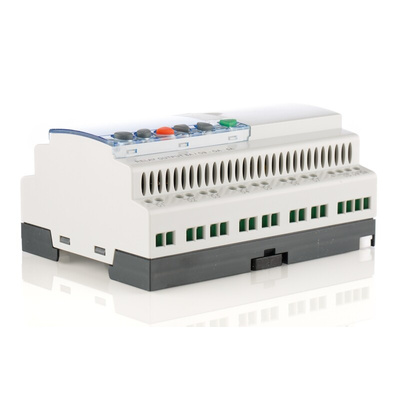

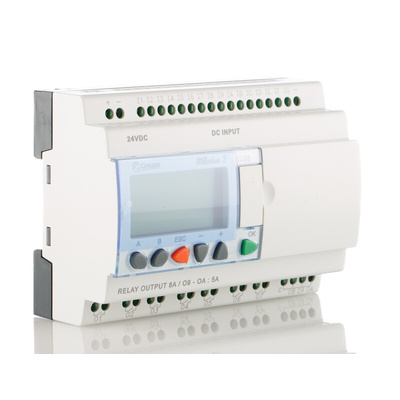

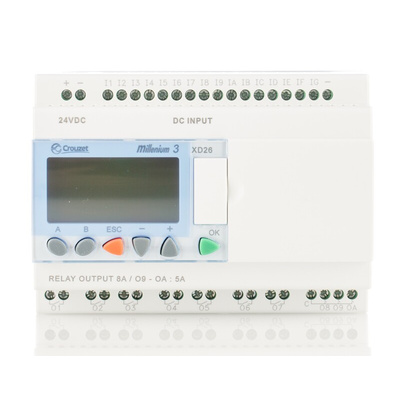

Crouzet Logic module

The Crouzet Millennium 3 series 16 inputs (6 analogues inputs with 10-bit resolution) and 10 outputs. It has a large memory for applications that require larger space. The logic module’s voltage rating is 24VDC and output current rating is 8A. This
DIN rail mounting type logic module has a screw termination method.

Features and Benefits

Operating temperature ranges between -20°C and 55°C
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Backlit green LCD display
Expandable version
Modbus communication 2 x 8 words with read\\write access
Network creation option communication between seven millennium 3 units

Applications

Automatic washing equipment
Agricultural machinery
Air conditioning
Heating systems
