88970241, Crouzet Millenium 3 Series I/O module for Use with Millenium 3 Series, 24 V dc Supply, Analogue Output, 2-Input,, Логический модуль

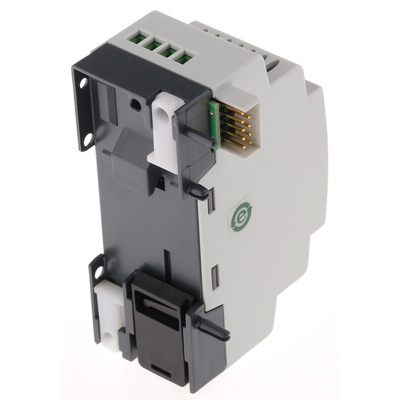

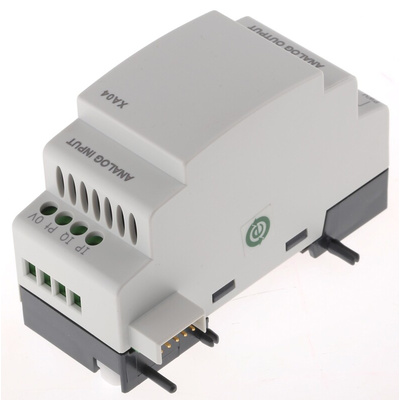

Crouzet Logic Module

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium analogue extension version XA04 series has 1 analogue input with options of 0-10 V/0-20mA and 1 analogue with options of 0-10 V/0-20 mA/Pt100. It has 2 analogue outputs of options 0-10 V/PWM. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24 VDC via the controller.
Crouzet Millenium 3:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
Compact controller

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems

Certifications

CE
UL approved
UL approved
CSA
IP40 rated
