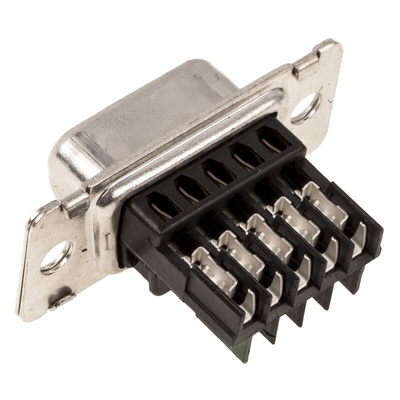

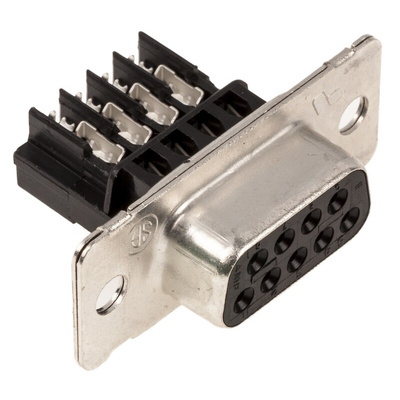

1-745491-7, TE Connectivity Amplimite HDE-20 9 Way Cable Mount D-sub Connector Socket, 2.74mm Pitch, Разъем

AMPLIMITE D-sub Connector, HDE-20 IDC Series, Metal Shell, Cable Mount

AMPLIMITE HDE-20 metal shell IDC d-sub connectors for discrete wire and jacketed cable. These HDE-20 IDC d-sub cable plug and socket connectors have a tin plated steel shell and a 94V-0 rated black thermoplastic insert and are pre-loaded with duplex plated phosphor bronze IDC contacts with gold on the mating end and tin on the crimping end. There are differing contact plating and wire size options for these HDE-20 IDC d-sub connectors, please refer to manufacturer datasheet for details. The maximum wire insulation thickness that these contacts accept is 0.38mm, and the maximum wire insulation diameter is 1.52mm. The HDE-20 series of IDC d-sub cable connectors will mate with the HDP and HD-20 board mount range of d-sub connectors
For suitable cable clamps or backshells please see stock numbers 450-9113, 717-4596 and 680-9131 typically
For suitable female screwlocks and male screw retainers please see stock numbers 450-9258, 717-4473, 450-9208 and 717-4498 typically.
For locking post assembly see stock number 450-9365
For spring latch see stock number 450-9321
For latching blocks with threaded hole see 450-9371 and 717-4656
For latching blocks with slot recess and thru' hole see stock number 680-9392
For suitable tooling see pistol grip tool handle (stock number 120-4477), pistol grip head (stock number 120-4483) and T-handle insertion tool (stock number 536-9786)

Approvals

UL E28476 UL E81956 CSA LR 16455

TE Connectivity AMPLIMITE D-Subminiature Connectors

AMPLIMITE, HDE-20 IDC Series, Metal Shell, Cable Mount D-sub Connector, 9 Way 745491 Customer Drawing

Instruction sheet
